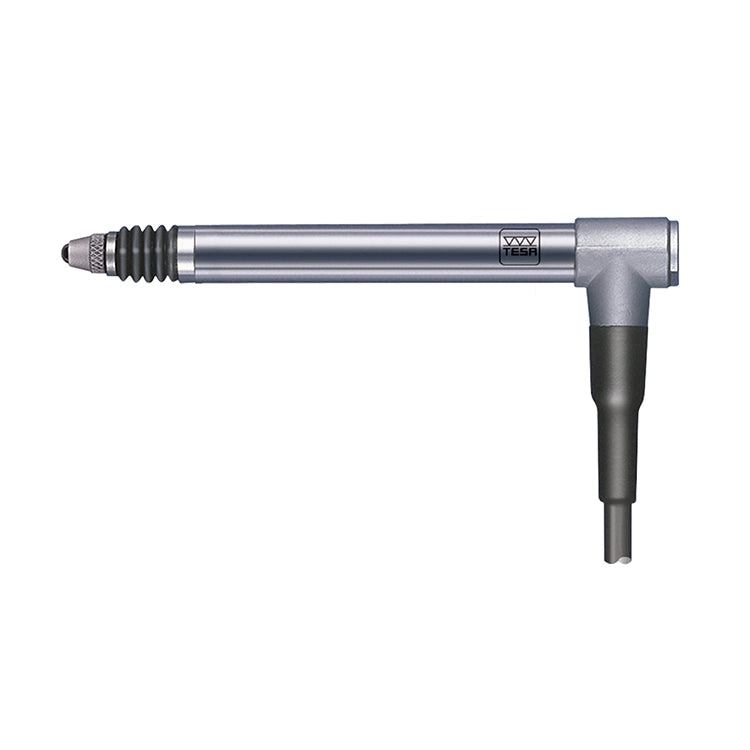

TESA 03210927 GT22-T Probe ± 1 mm 2.5N

• Measuring bolt mounted on a ball bearing
• Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately
• Guiding is insensitive to any radial force exerted on the measuring bolt

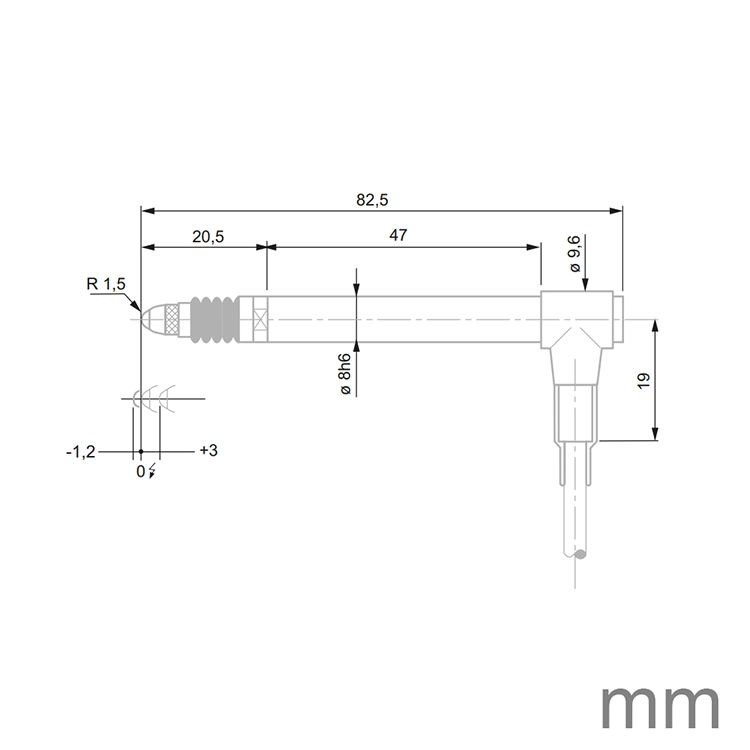

• Ø 8 mm probe housing, can be clamped over its entire length
• The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows
• Version with detachable cable available (depending on model)

Measurement:

• Axial movement
• The measuring force can be adjusted by changing the spring (depending on model)
• The measuring inserts can be replaced or exchanged
