- Measuring range: ± 1mm
- Measuring force: 4N
- Bolt travel: 4.3mm
- Bolt retraction: Mechanical
- Repeatability: 0.00001mm
- Hysteresis: 0.00002mm
- Accuracy (L in mm): 0.2 + 3 x (L x L x L) µm
- Ball insert: Tungsten carbide Ø 3mm
- Cable: 2m, Radial
- IP Rating: IP65
- Standard: DIN 32876
-
- Measuring bolt mounted on a ball bearing
- Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately
- Guiding is insensitive to any radial force exerted on the measuring bolt

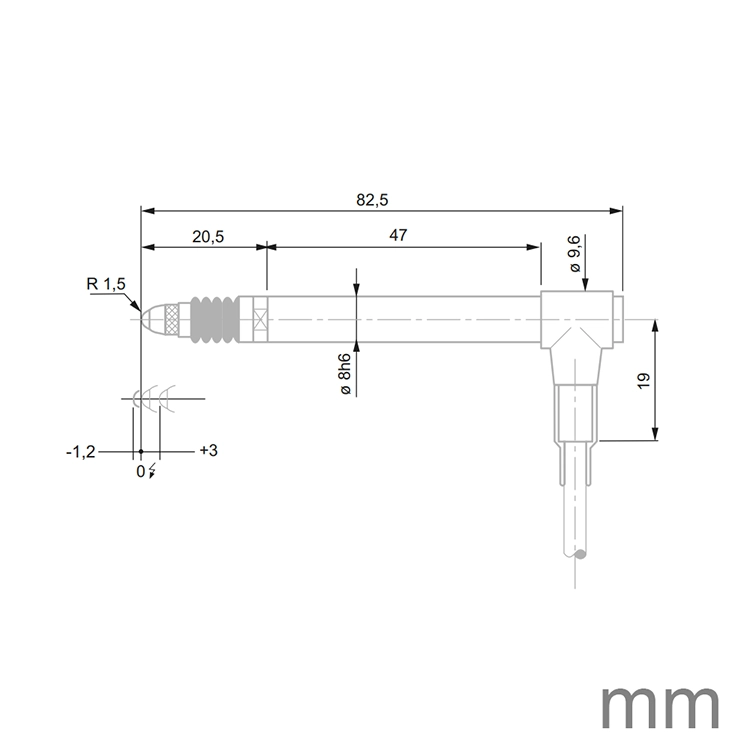

- Ø 8 mm probe housing, can be clamped over its entire length
- The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows
- Version with detachable cable available (depending on model)
Measurement:
- Axial movement
- The measuring force can be adjusted by changing the spring (depending on model)
- The measuring inserts can be replaced or exchanged
