- Measuring range: ± 1mm
- Measuring force: 0.4N
- Bolt travel: 2.1mm
- Bolt retraction: Vacuum
- Repeatability: 0.0001mm
- Hysteresis: 0.0001mm
- Accuracy (L in mm): 0.2 + 5 x (L x L) µm
- Ball insert: Tungsten carbide Ø 2mm
- Cable: 2m, Radial
- IP Rating: IP65
- Standard: DIN 32876
-

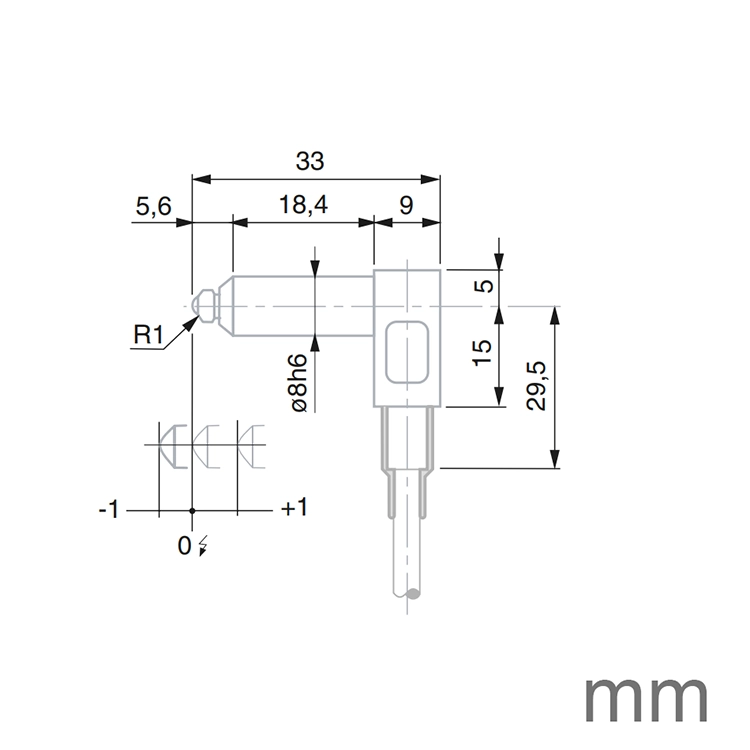

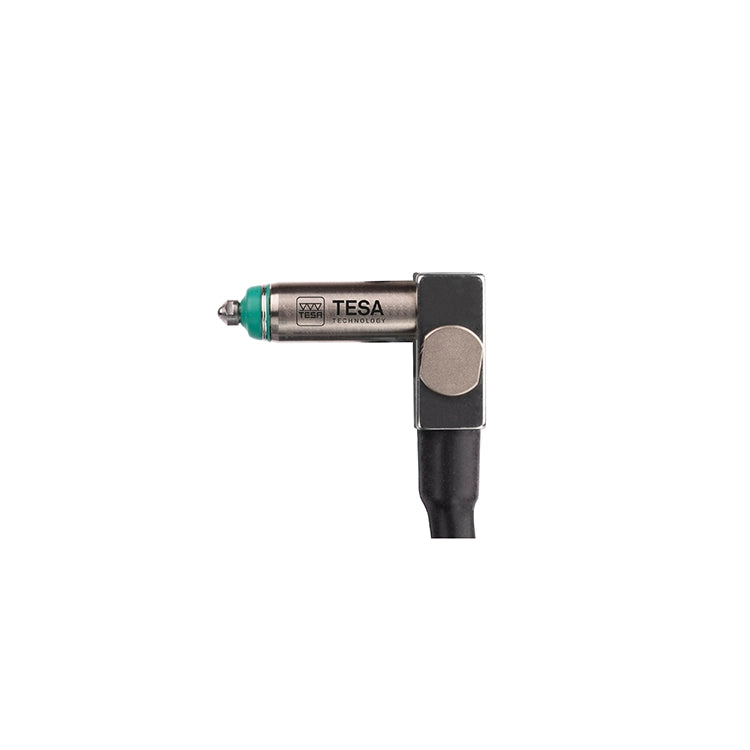

- Compact probe
- Measuring bolt mounted on a plain bearing
- The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows
Measurement:
- Axial movement
- Designed to be mounted on a measuring head for the inspection of bores and similar features
