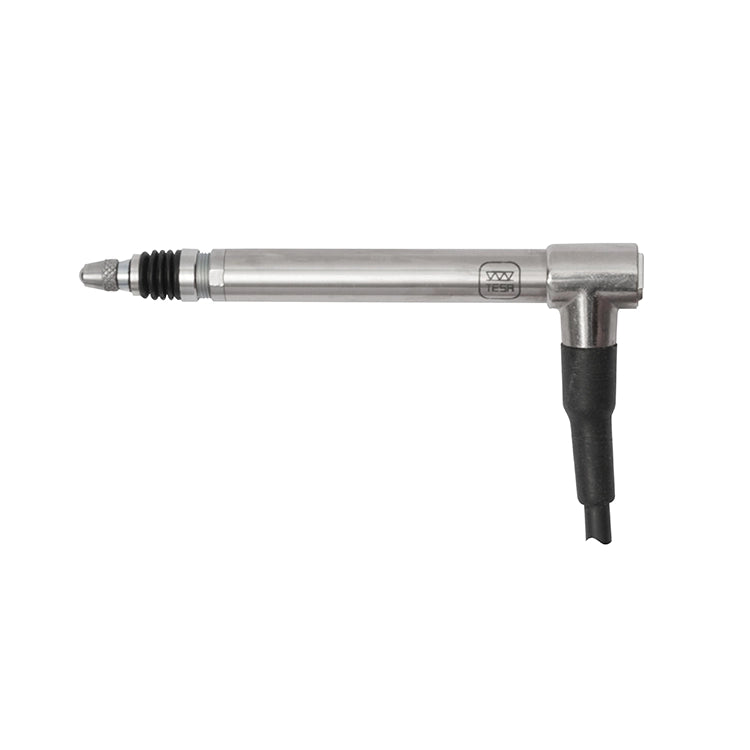

TESA 03230021 GT22 High Precision Probe ± 0.2mm 0.63N

Name: TESA 03230021 GT22 High Precision Probe ± 0.2mm 0.63N
Brand: Tesa
SKU: 03230021
Price: 562.0 GBP
Availability: InStock

TesaSKU: 03230021

All prices exclude VAT, which will be added at checkout.

Price:

£562.00 £709.00

Quantity:

Measuring range: ± 0.2mm
Measuring force: 0.63N
Bolt travel: 4.3mm
Bolt retraction: Mechanical, vacuum
Repeatability: 0.00005mm
Hysteresis: 0.00005mm
Accuracy (L in mm): 0.07 + 0.4 x L µm
Ball insert: Tungsten carbide Ø 3mm
Cable: 2m, Radial
IP Rating: IP65
Standard: DIN 32876
- Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately
- Measuring bolt mounted on a ball bearing
- Ø 8 mm probe housing, can be clamped over its entire length
Measurement:
- Very high precision probe suitable for measuring gauge blocks
