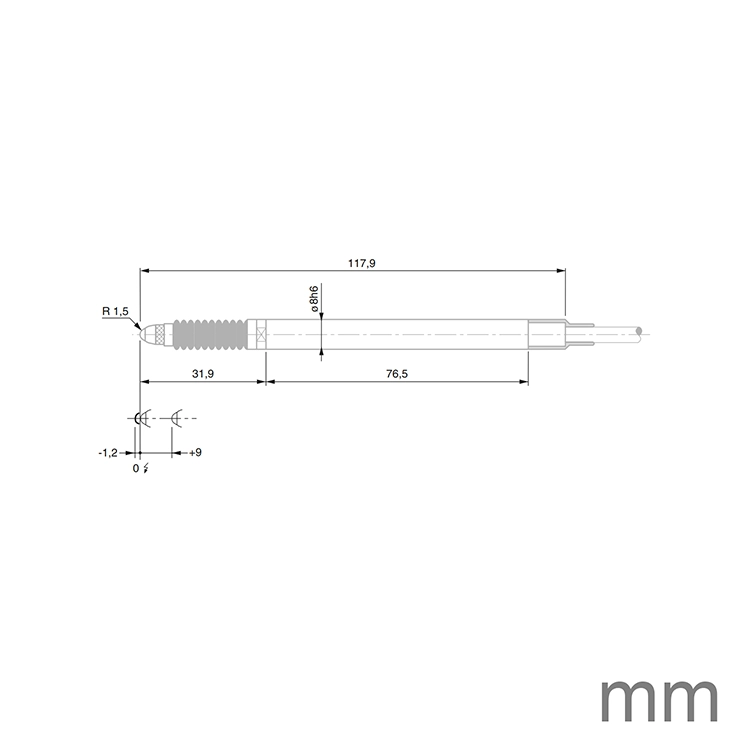

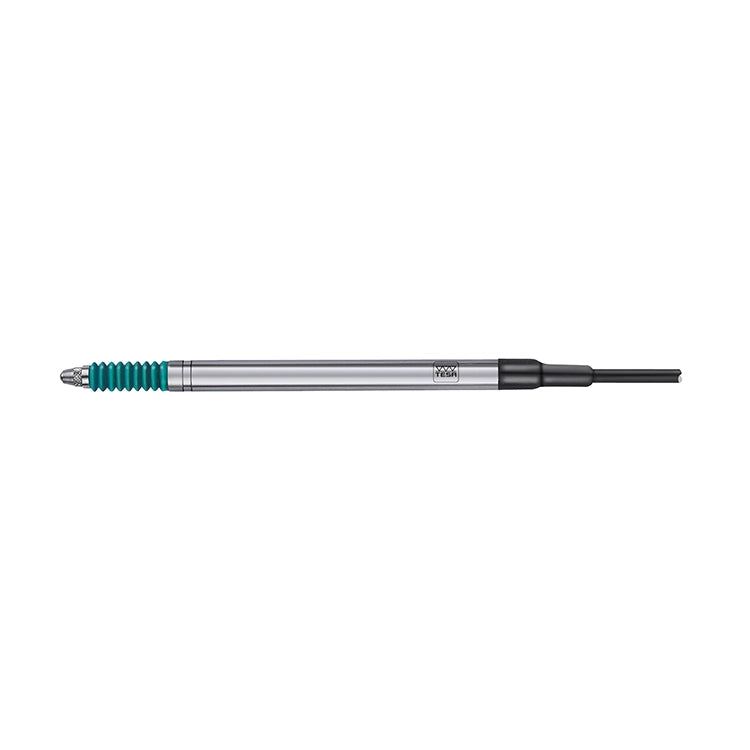

TESA 03230027 GT27 Probe ± 2mm 0.63N

• Measuring range: ± 2mm
• Measuring force: 0.63N
• Bolt travel: 10.3mm
• Bolt retraction: Mechanical
• Repeatability: 0.00005mm
• Hysteresis: 0.00005mm
• Accuracy (L in mm): 0.2 + 3 x (L x L x L) µm
• Ball insert: Tungsten carbide Ø 3mm
• Cable: 2m, Axial
• IP Rating: IP65
• Standard: DIN 32876

• Long retraction travel to prevent the probe from being damaged
• Measuring bolt mounted on a ball bearing
• Guiding is insensitive to any radial force exerted on the measuring bolt
• Ø 8 mm probe housing, can be clamped over its entire length
• The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows
• Version with detachable cable available (depending on model)

Measurement:

• The measuring force can be adjusted by changing the spring (depending on model)
• The measuring inserts can be replaced or exchanged
