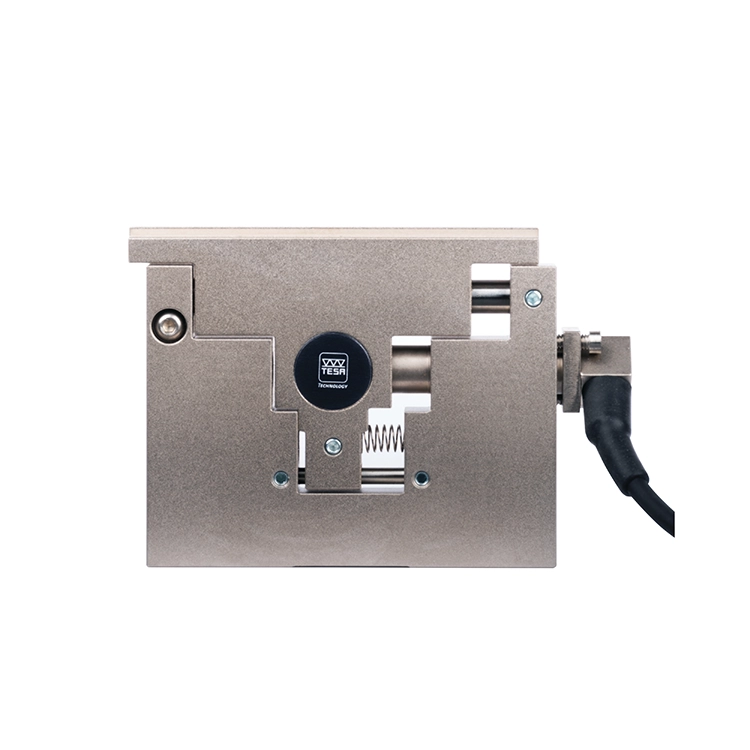

TESA 03230028 FMS102 Probe ± 2mm 2N

• Measuring range: ± 2mm
• Measuring force: 2N
• Bolt travel: 5.8mm
• Bolt retraction: Retraction by air pressure (optional accessory)
• Repeatability: 0.0005mm
• Hysteresis: 0.0005mm
• Accuracy (L in mm): 0.2 + 3 x (L x L x L) µm
• Cable: 2m, Radial
• IP Rating: IP50
• Standard: DIN 32876

• Ball bearing guided linear movement
• Compact assembly noted for its robustess
• Protected probes provide dust protection of the 2 sides faces

Measurement:

• Parallel guidance
• Probe can be used in any position for measuring
• Measuring direction can be changed
• Retraction of the measuring insert is adjustable
• Measuring force is adjustable
• Possibility of using off-centre measuring inserts
• The measuring inserts can be replaced or exchanged
