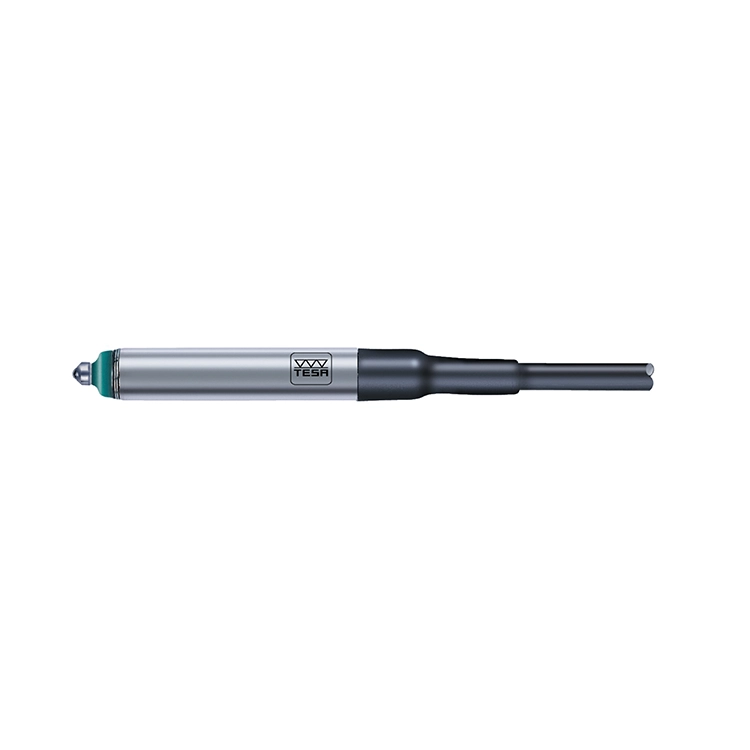

TESA 03230035 GT43 Probe Miniature ± 1mm 0.4N

Name: TESA 03230035 GT43 Probe Miniature ± 1mm 0.4N
Brand: Tesa
SKU: 03230035
Price: 361.0 GBP
Availability: InStock

TesaSKU: 03230035

All prices exclude VAT, which will be added at checkout.

Price:

£361.00 £456.00

Quantity:

Measuring range: ± 1mm
Measuring force: 0.4N
Bolt travel: 2.1mm
Bolt retraction: Mechanical
Repeatability: 0.0001mm
Hysteresis: 0.00015mm
Accuracy (L in mm): 0.2 + 5 x (L x L) µm
Ball insert: Tungsten carbide Ø 2mm
Cable: 2m, Axial
IP Rating: IP65
Standard: DIN 32876
- Compact probe
- The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows
Measurement:
- Axial movement
- Designed to be mounted on a measuring head for the inspection of bores and similar features
