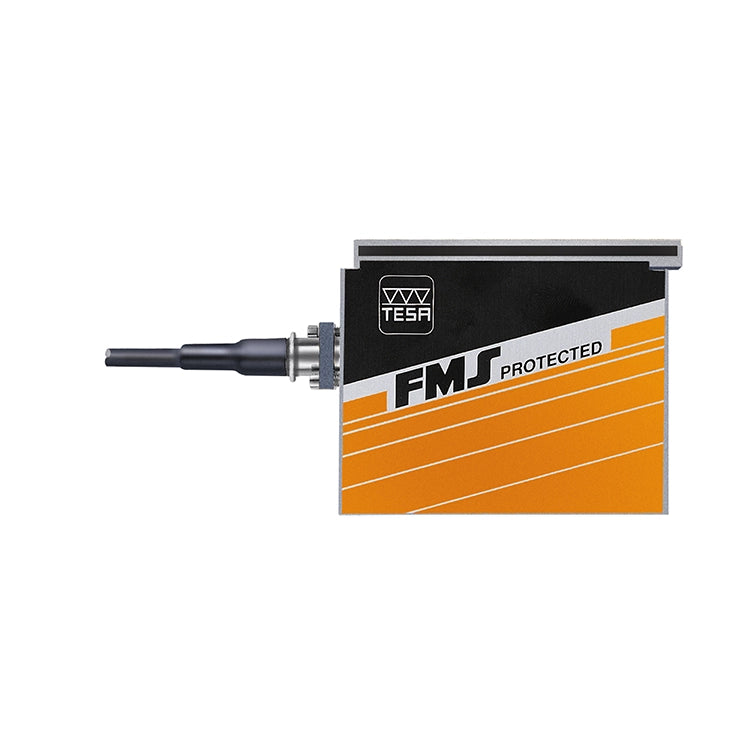

- Measuring range: ± 2mm
- Measuring force: 2N
- Bolt travel: 5.8mm
- Bolt retraction: Retraction by air pressure (optional accessory)
- Repeatability: 0.0005mm
- Hysteresis: 0.0005mm
- Accuracy (L in mm): 0.2 + 3 x (L x L x L) µm
- Cable: 2m, Axial
- IP Rating: IP54
- Standard: DIN 32876
-
- Ball bearing guided linear movement
- Compact assembly noted for its robustess
- Protected probes provide dust protection of the 2 sides faces
Measurement:
- Parallel guidance
- Probe can be used in any position for measuring
- Measuring direction can be changed
- Retraction of the measuring insert is adjustable
- Measuring force is adjustable
- Possibility of using off-centre measuring inserts
- The measuring inserts can be replaced or exchanged
