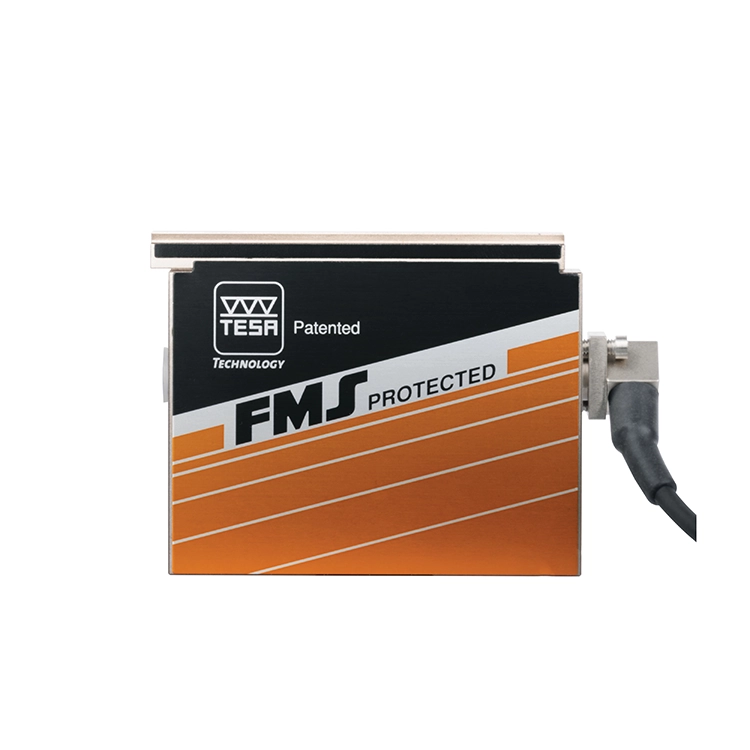

TESA 03230052 FMS132-P Probe Protected ± 2.9mm 2N

Roll over image to zoom in Click on image to zoom

TESA 03230052 FMS132-P Probe Protected ± 2.9mm 2N

TESA 03230052 FMS132-P Probe Protected ± 2.9mm 2N

TesaSKU: 03230052

All prices exclude VAT, which will be added at checkout.

Price:

£778.00 £978.00

Quantity:

Measuring range: ± 2.9mm
Measuring force: 2N
Bolt travel: 5.8mm
Bolt retraction: Retraction by air pressure (optional accessory)
Repeatability: 0.0005mm
Hysteresis: 0.0005mm
Accuracy (L in mm): 0.2 + 3 x (L x L x L) µm
Cable: 2m, Radial
IP Rating: IP54
Standard: DIN 32876
- Ball bearing guided linear movement
- Compact assembly noted for its robustess
- Protected probes provide dust protection of the 2 sides faces
Measurement:
- Parallel guidance
- Probe can be used in any position for measuring
- Measuring direction can be changed
- Retraction of the measuring insert is adjustable
- Measuring force is adjustable
- Possibility of using off-centre measuring inserts
- The measuring inserts can be replaced or exchanged
