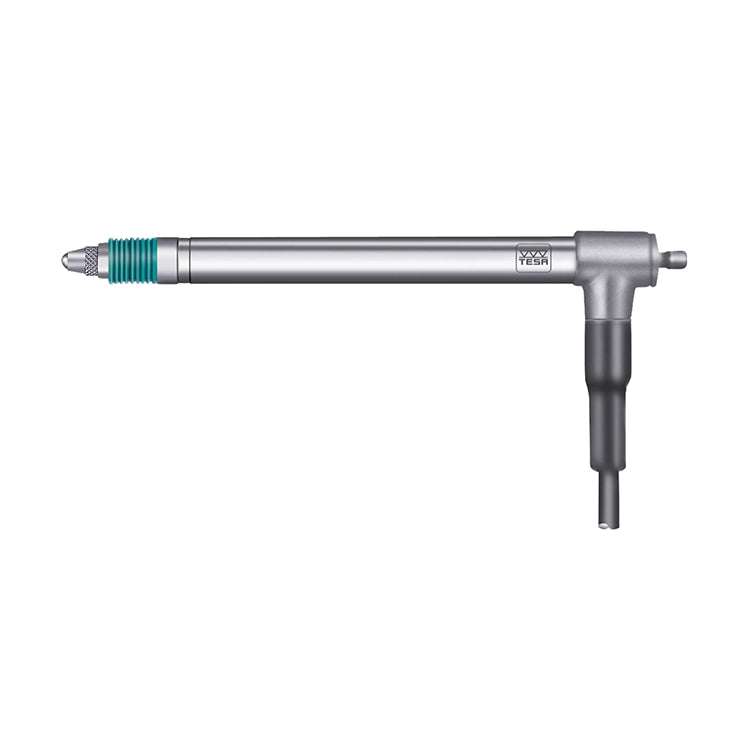

TESA 03230053 GT282 Probe Pneumatic ± 2mm 1N

Probe Features:

• Measuring range: ± 2mm
• Measuring force: 1N
• Bolt travel: 10.3mm
• Bolt retraction:
  • Activation: Pressure
  • Retraction: Spring
• Repeatability: 0.00005mm
• Hysteresis: 0.00005mm
• Accuracy (L in mm): 0.2 + 3 x (L x L x L) µm
• Ball insert: Tungsten carbide Ø 3mm
• Cable: 2m, Radial
• IP Rating: IP65
• Standard: DIN 32876
• • Pneumatic probe
  • Wide-range probe
  • Measuring bolt mounted on a ball bearing
  • Guiding is insensitive to any radial force exerted on the measuring bolt
  • Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately
  • Ø 8 mm probe housing, can be clamped over its entire length
  • The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows

  Measurement:

  • Probes for devices incorporating fully or semi-automated measurement routines
  • The retraction of the measuring bolt is done by spring force
  • Probe brought into measuring position by pneumatic activation (depending on the model)
  • The measuring inserts can be replaced or exchanged
  • Measuring force adjustable by changing the spring (depending on the model)
