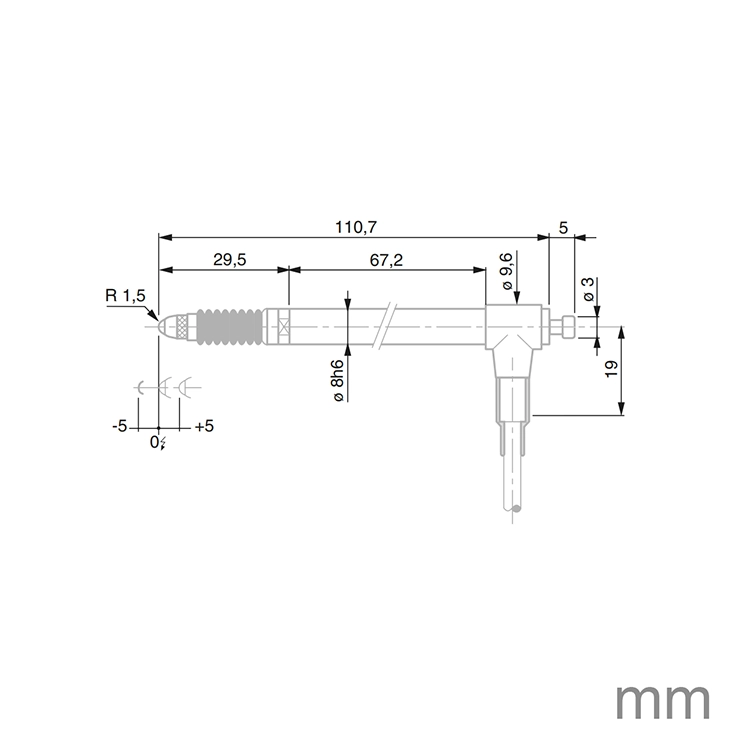

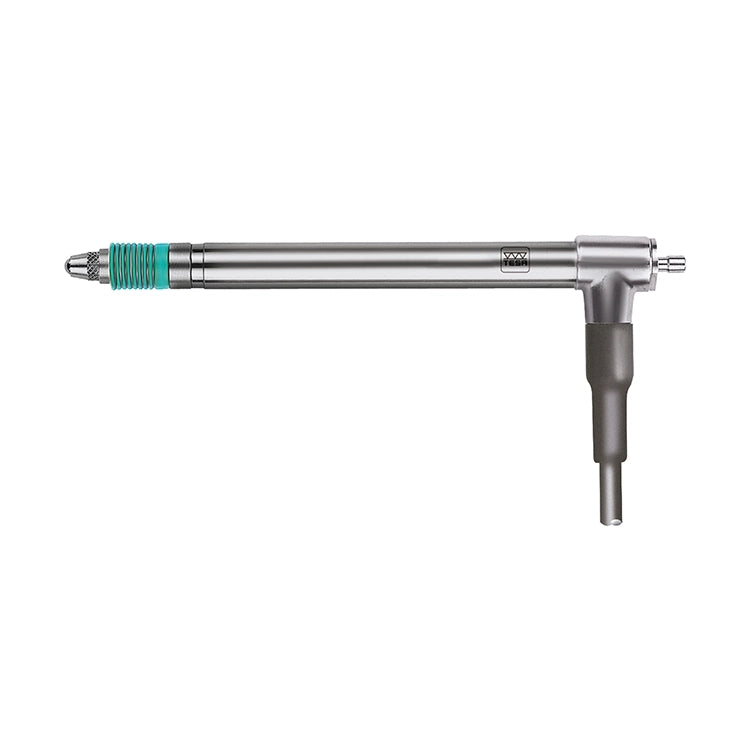

TESA 03230055 GT622 Probe Pneumatic ± 5mm 2N

Probe Features:

• Measuring range: ± 5mm
• Measuring force: 2N
• Bolt travel: 10.3mm
• Bolt retraction:
  • Activation: Pressure
  • Retraction: Spring
• Repeatability: 0.00005mm
• Hysteresis: 0.00005mm
• Accuracy (L in mm):
  • 1 + 4 x L µm
  • 0.6 + 0.8 x L µm (with TESA interface)
• Ball insert: Tungsten carbide Ø 3mm
• Cable: 2m, Radial
• IP Rating: IP65
• Standard: DIN 32876
• • Pneumatic probe
  • Wide-range probe
  • Measuring bolt mounted on a ball bearing
  • Guiding is insensitive to any radial force exerted on the measuring bolt
  • The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows

  Measurement:

  • Probes for devices incorporating fully or semi-automated measurement routines
  • For long measuring strokes and low resolution of values
  • The retraction of the measuring bolt is done by spring force
  • Probe brought into measuring position by pneumatic activation (depending on the model)
  • The measuring inserts can be replaced or exchanged
  • Measuring force adjustable by changing the spring (depending on the model)
