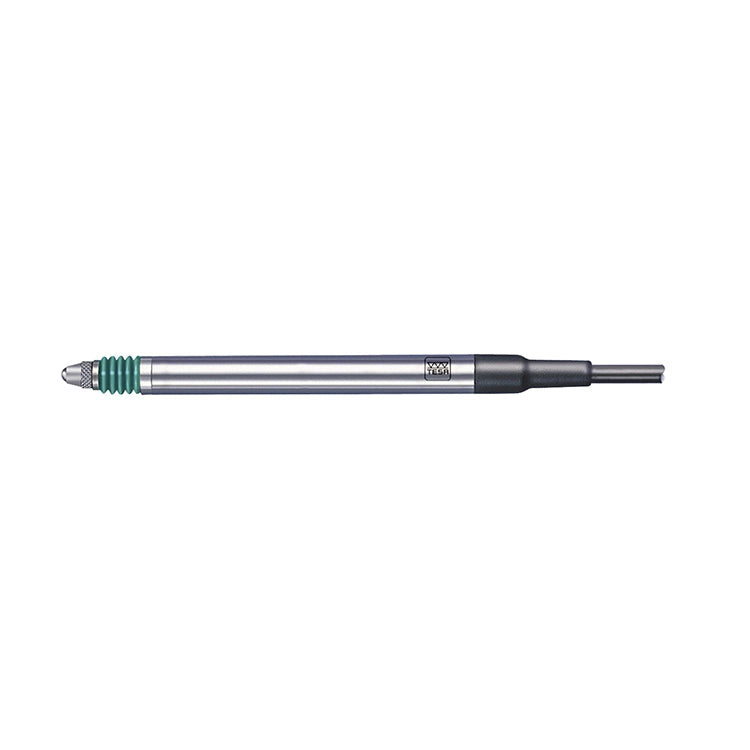

TESA 03230059 TL21 DC Probe ± 2mm 0.63N

• Provided with an electronic box which converts the signal to obtain a direct current output signal
• Measuring bolt mounted on a ball bearing
• Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately
• Guiding is insensitive to any radial force exerted on the measuring bolt
• Ø 8 mm probe housing, can be clamped over its entire length
• The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows

Measurement:

• Used for direct connection to a computer unit or interface equipped with an analogue input
• The measuring force can be adjusted by changing the spring
• The measuring inserts can be replaced or exchanged
