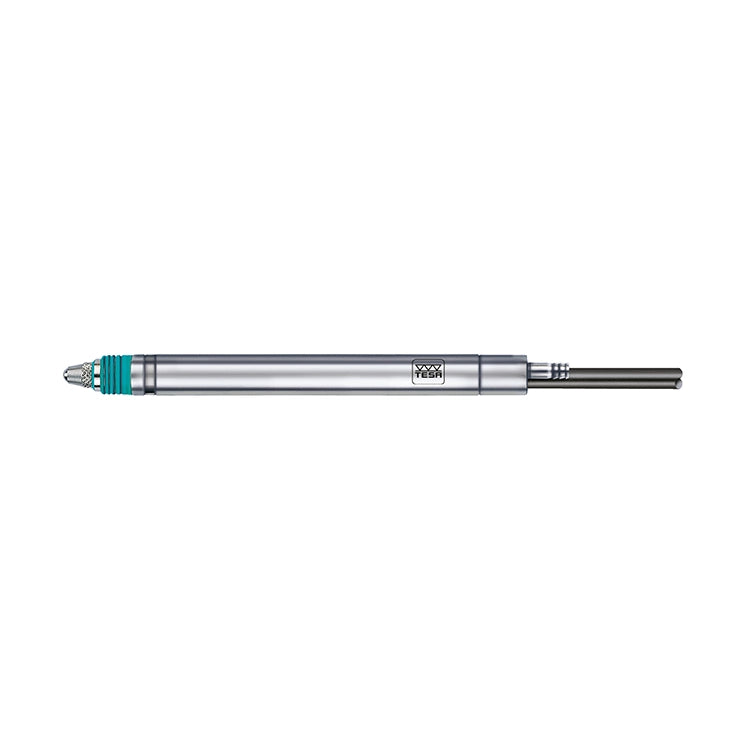

TESA 03230060 GTL212 Probe Pneumatic Linearized ± 1.5mm 1.2N

Probe Features:

• Measuring range: ± 1.5mm
• Measuring force: 1.2N
• Bolt travel: 3.2mm
• Bolt retraction:
  • Activation: Pressure
  • Retraction: Spring
• Repeatability: 0.000015mm
• Hysteresis: 0.00002mm
• Accuracy (L in mm):
  • 0.2 + 2.4 x (L x L) µm
  • 0.2 + 0.8 x L µm (with TESA interface)
• Ball insert: Tungsten carbide Ø 3mm
• Cable: 2m, Axial
• IP Rating: IP65
• Standard: DIN 32876
• • Linearized probe
  • Measuring bolt mounted on a ball bearing
  • Guiding is insensitive to any radial force exerted on the measuring bolt
  • Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately
  • Ø 8 mm probe housing, can be clamped over its entire length
  • The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows

  Measurement:

  • Probes for devices incorporating fully or semi-automated measurement routines
  • Probe brought into measuring position by pneumatic activation
  • The measuring inserts can be replaced or exchanged
  • Measuring force adjustable by changing the spring (depending on the model)
