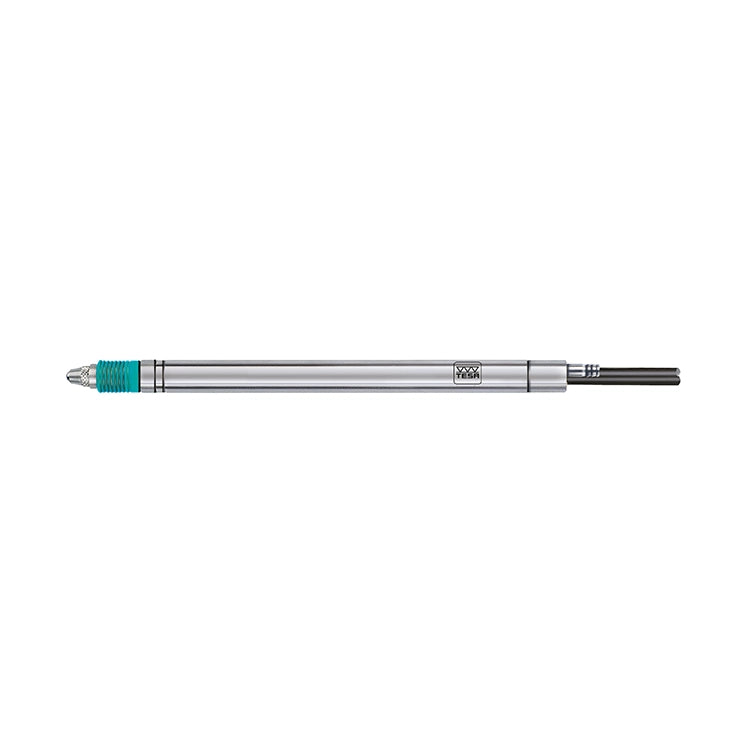

TESA 03230061 GT272 Probe Pneumatic ± 2mm 1N

• Activation: Pressure
• Retraction: Spring

• Pneumatic probe
• Wide-range probe
• Measuring bolt mounted on a ball bearing
• Guiding is insensitive to any radial force exerted on the measuring bolt
• Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately

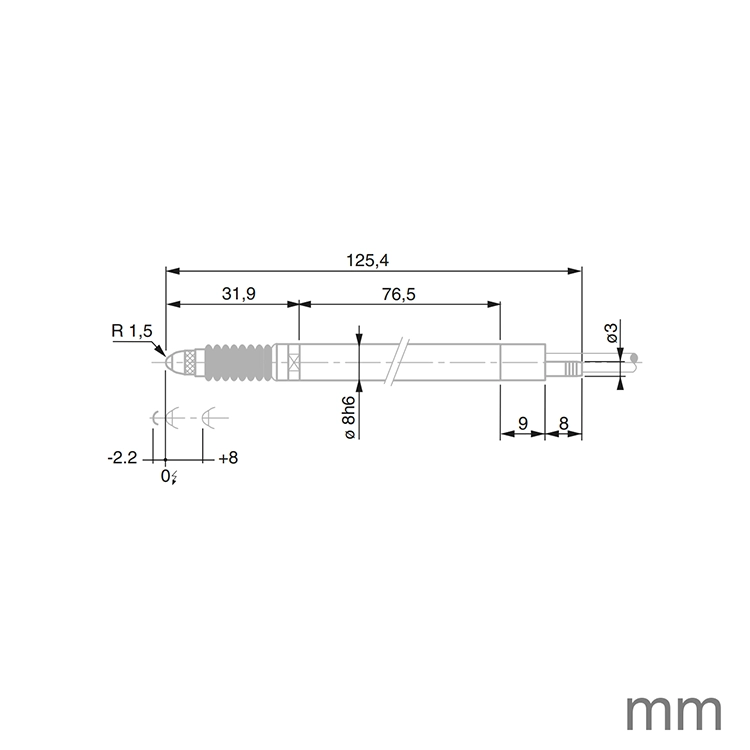

• Ø 8 mm probe housing, can be clamped over its entire length
• The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows

Measurement:

• For devices incorporating fully or semi-automated measurement routines
• The retraction of the measuring bolt is done by spring force
• Probe brought into measuring position by pneumatic activation (depending on the model)
• The measuring inserts can be replaced or exchanged
• Measuring force adjustable by changing the spring (depending on the model)
