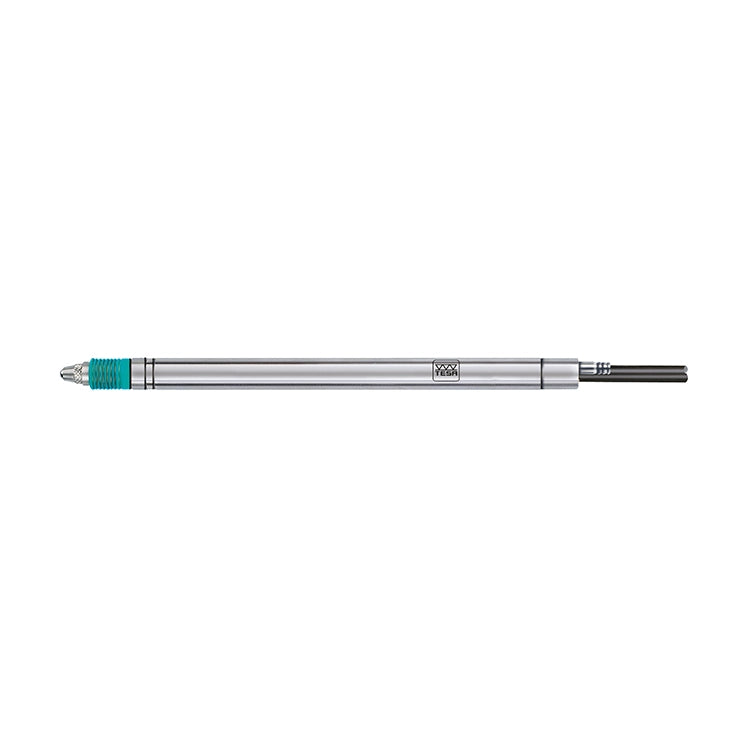

TESA 03230062 GT612 Probe Pneumatic ± 5mm 2N

• Activation: Pressure
• Retraction: Spring

• 1 + 4 x L µm
• 0.6 + 0.8 x L µm (with TESA interface)

• Pneumatic probe
• Wide-range probe
• Measuring bolt mounted on a ball bearing
• Guiding is insensitive to any radial force exerted on the measuring bolt
• The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows

Measurement:

• For devices incorporating fully or semi-automated measurement routines
• For long measuring strokes and low resolution of values
• The retraction of the measuring bolt is done by spring force
• Probe brought into measuring position by pneumatic activation (depending on the model)
• The measuring inserts can be replaced or exchanged
• Measuring force adjustable by changing the spring (depending on the model)
