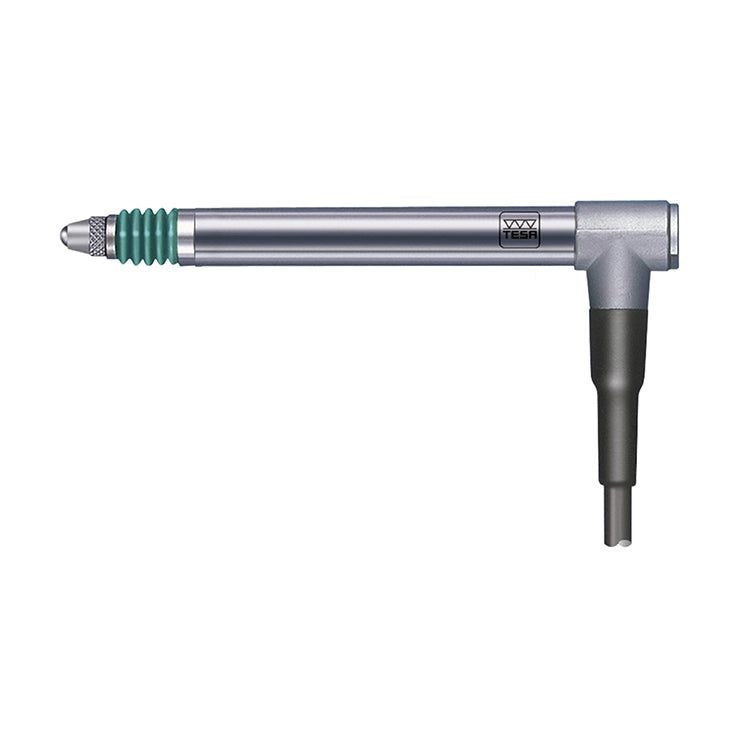

TESA 03230076 GTL22 Probe Linearized ± 2mm 1N

• 0.2 + 2.4 x (L x L) µm
• 0.2 + 0.8 x L µm (with TESA interface)

• Linearized probe
• Measuring bolt mounted on a ball bearing
• Guiding is insensitive to any radial force exerted on the measuring bolt
• Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately

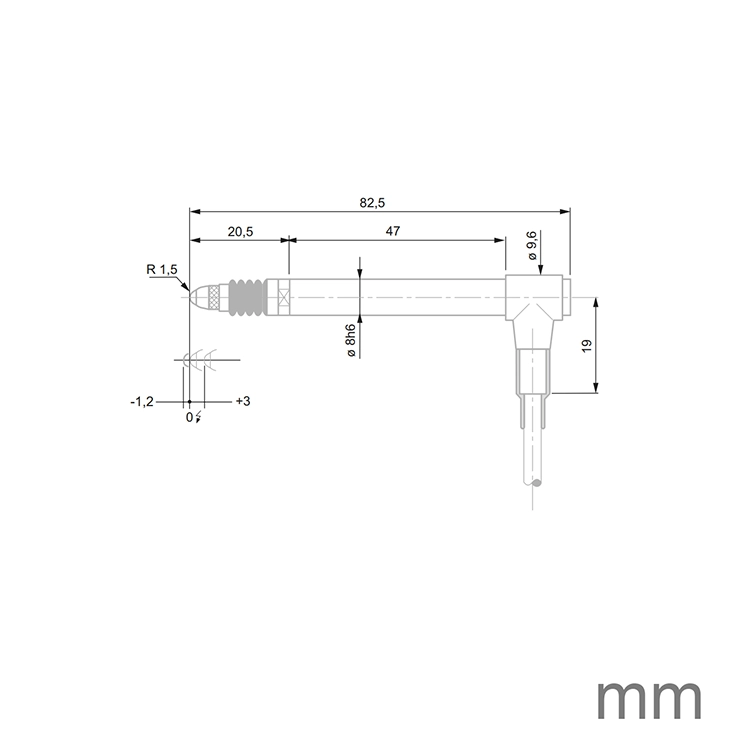

• Ø 8 mm probe housing, can be clamped over its entire length
• The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows

Measurement:

• The measuring force can be adjusted by changing the spring (depending on model)
• The measuring inserts can be replaced or exchanged
