- Measuring range: ± 0.3mm
- Measuring force: 0.1N
- Bolt travel: 0.7mm
- Bolt retraction: Without
- Repeatability: 0.0001mm
- Hysteresis: 0.00025mm
- Accuracy (L in mm): 0.2 + 50 x (L x L)
- Ball insert: Tungsten carbide Ø 2mm
- Cable: 2.2m, Radial
- IP Rating: IP40
- Standard: DIN 32876
-

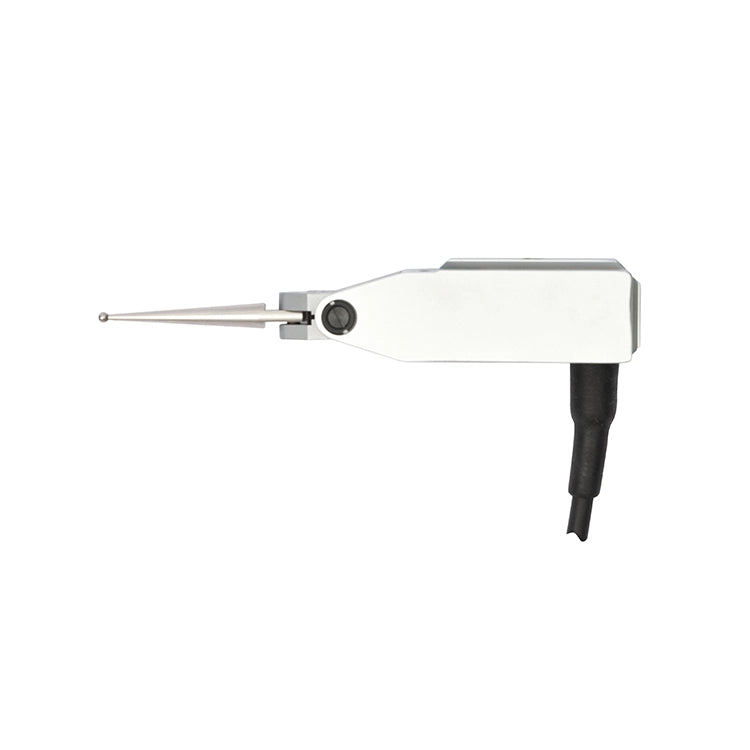

- Compact probe
- Equipped with an electronic housing that converts the signal to obtain a DC voltage output signal
Measurement:
- Axial movement
- Used for direct connection to a computer unit or an interface with an analog input
