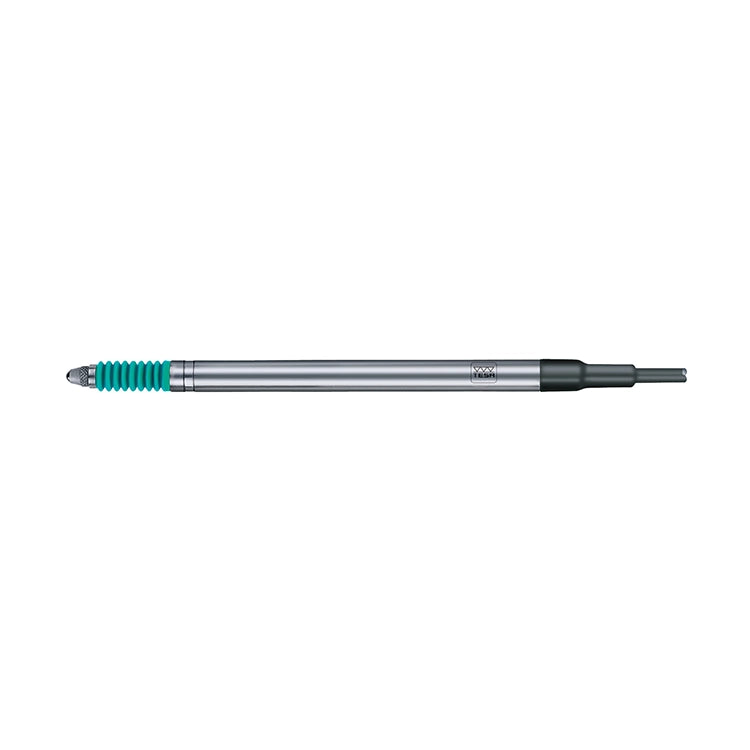

TESA 03230086 GT61 DC Probe ± 5mm 0.9N

• Provided with an electronic box which converts the signal to obtain a direct current output signal
• Measuring bolt mounted on a ball bearing
• Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately
• Guiding is insensitive to any radial force exerted on the measuring rod
• 8 mm diameter probe housing, can be clamped over its entire length
• The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows of high elastic quality

Measurement:

• Used for direct connection to a computer unit or interface equipped with an analogue input
• The measuring inserts can be replaced or exchanged
