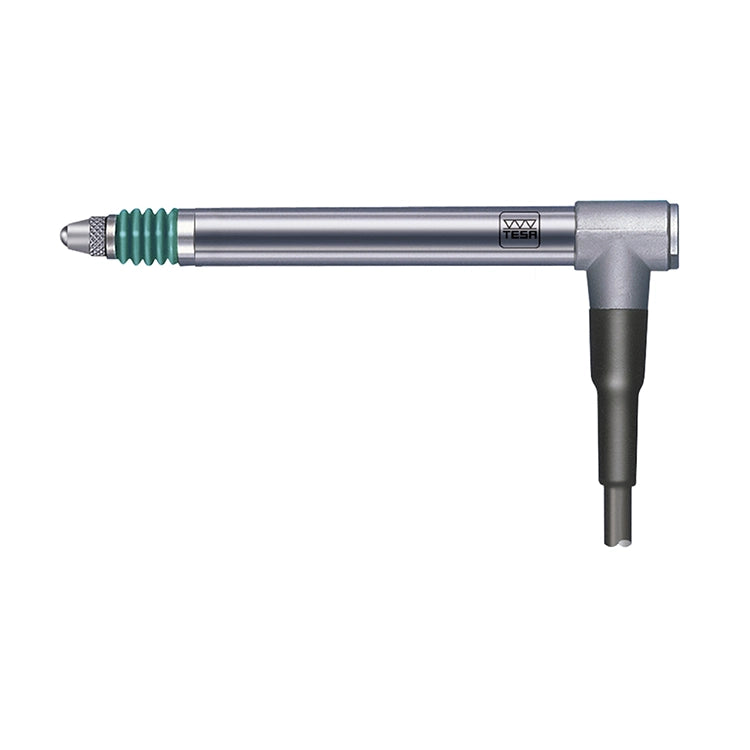

- Measuring range: ± 2mm
- Measuring force: 0.63N
- Bolt travel: 4.3mm
- Bolt retraction: Mechanical
- Repeatability: 0.0001mm
- Hysteresis: 0.0005mm
- Accuracy (L in mm): 0.4 + 2.4 x (L x L) µm
- Ball insert: Tungsten carbide Ø 3mm
- Cable: 2.9m, Axial
- IP Rating: IP65
- Standard: DIN 32876
-
- USB connectivity
- Measuring bolt mounted on a ball bearing
- Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately
- Guiding is insensitive to any radial force exerted on the measuring bolt

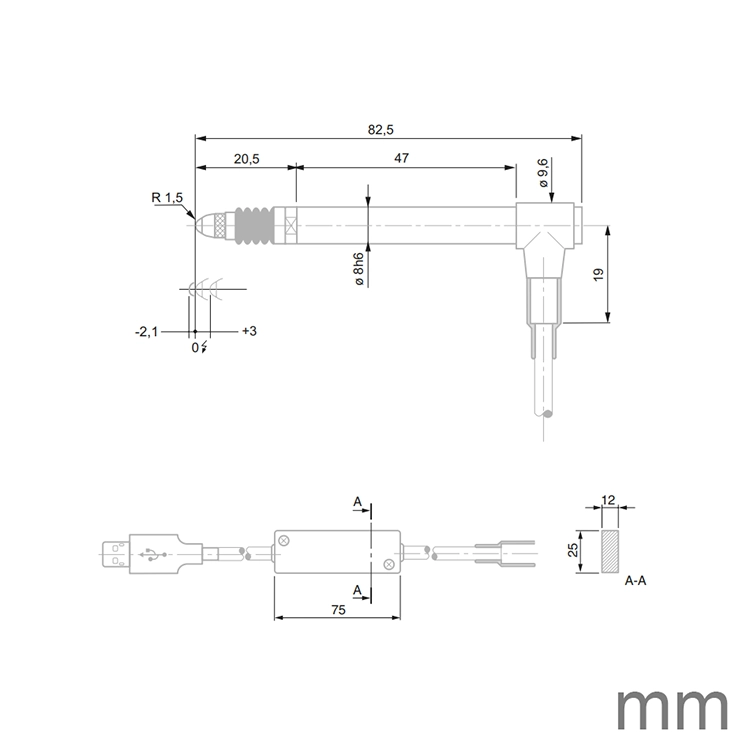

- Ø 8 mm probe housing, can be clamped over its entire length
- The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows
Measurement:
- No need to use an interface box as it connects directly to a computer’s USB port
- The measuring inserts can be replaced or exchanged
Software:
- Possibility to manage from 1 to 4 USB probes with free TSIP software downloadable from TESA website
- Possibility to manage 4 or more USB probes with DataDirect, StatExpress or DATA-VIEWER software (free)
Other:
- Communication by sending ASCII commands possible
