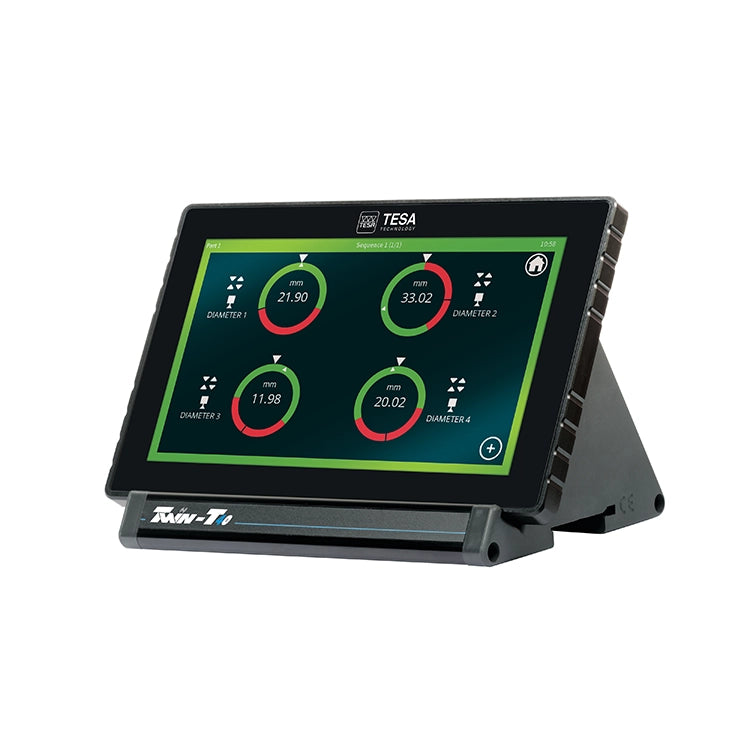

TESA 04430015 TWIN-T40 Digital Display Unit

Display Unit Features:

• Input: 4 measurements with 4 probe inputs
• Range: ± 5000 µm
• Resoltion: 0.1µm
• Accuracy (At 20°C, relative humidity of ≤ 50 %, with fictive probes): ± 0.2% measured value + 0.3µm
• IP rating: IP65
• Data output: TLC, RS232
• • Robust, for laboratory and workshop use
  • Compatible with a wide range of probes and measuring devices
  • Large colour screen for comfortable reading in dark environments
  • Black background display for excellent contrast
  • Refined interface for easy handling without confusion
  • 4 different display styles
  • Touch screen

  Functions:

  • One or four measurement values displayed
  • Static or dynamic measurements
  • Intuitive measurement setting
  • 16 tolerance classes available
  • Mathematical functions for simultaneous calculation of multiple probes (flatness)
