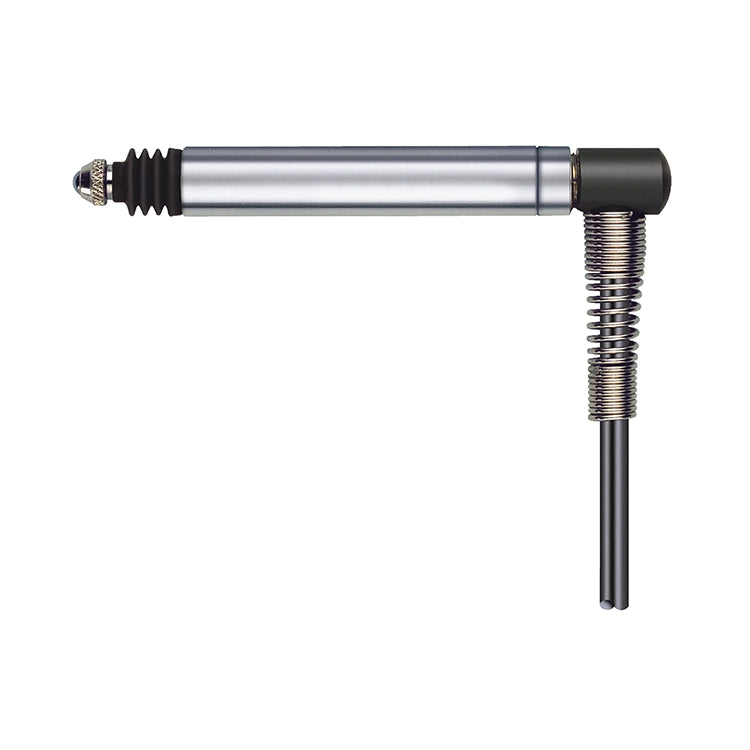

TESA 96410012 Probe ± 1mm 0.6N

TESA 96410012 Probe ± 1mm 0.6N

Roll over image to zoom in Click on image to zoom

TESA 96410012 Probe ± 1mm 0.6N

TESA 96410012 Probe ± 1mm 0.6N

TESA 96410012 Probe ± 1mm 0.6N

TesaSKU: 96410012

All prices exclude VAT, which will be added at checkout.

Price:

£468.00 £592.00

Quantity:

- Measuring range: ± 1mm
- Measuring force: 0.6N
- Bolt travel: 2.5mm
- Bolt retraction: Mechanical
- Repeatability: 0.0001mm
- Hysteresis: 0.0002mm
- Accuracy (L in mm): 0.2 % (for a measuring range of ± 1mm)
- Ball insert: Tungsten carbide Ø 3mm
- Cable: 2m, Axial and radial
- IP Rating: IP65
- Standard: DIN 32876
  - Measuring bolt mounted on a ball bearing
  - Guiding is insensitive to any radial force exerted on the measuring bolt
  - Ø 8 mm probe housing, can be clamped over its entire length
  - The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows
  Measurement:
  - The measuring inserts can be replaced or exchanged
