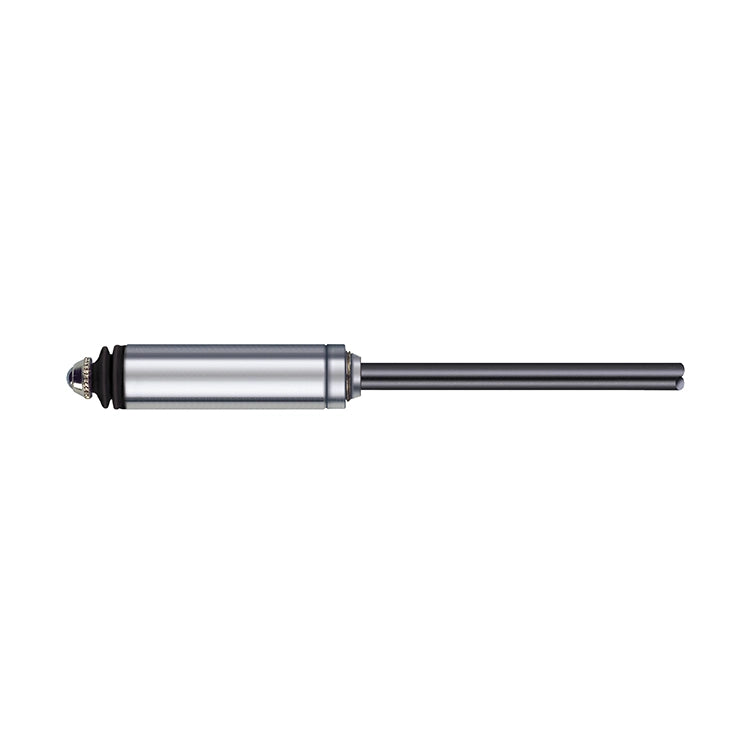

TESA 96430029 Probe Miniature ± 0.5mm 0.75N

TESA 96430029 Probe Miniature ± 0.5mm 0.75N

Roll over image to zoom in Click on image to zoom

TESA 96430029 Probe Miniature ± 0.5mm 0.75N

TESA 96430029 Probe Miniature ± 0.5mm 0.75N

TESA 96430029 Probe Miniature ± 0.5mm 0.75N

TesaSKU: 96430029

All prices exclude VAT, which will be added at checkout.

Price:

£702.00

Quantity:

- Measuring range: ± 0.5mm
- Measuring force: 0.75N
- Bolt travel: 1.25mm
- Bolt retraction: Mechanical
- Repeatability: 0.0002mm
- Hysteresis: 0.00002mm
- Accuracy (L in mm): 0.2 % (for a measuring range of ± 0.5mm)
- Ball insert: Tungsten carbide Ø 3mm
- Cable: 2m, Axial
- IP Rating: IP65
- Standard: DIN 32876
- - Measuring bolt mounted on a ball bearing
  - Guiding is insensitive to any radial force exerted on the measuring bolt
  - Ø 8 mm probe housing, can be clamped over its entire length
  - The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows
  Measurement:
  - The measuring inserts can be replaced or exchanged
