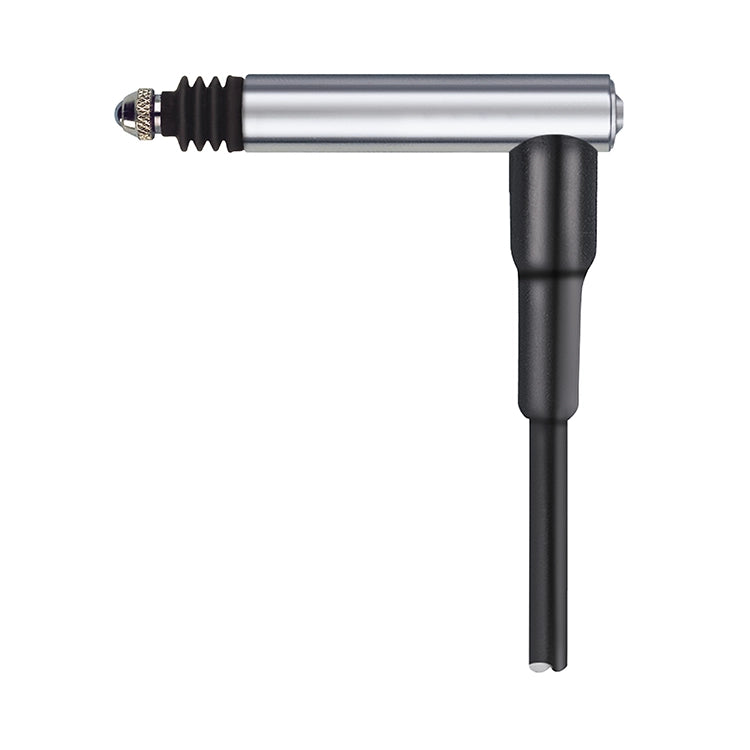

TESA 96441041 Probe Miniature ± 0.5mm 0.6N

Probe Features:

• Measuring range: ± 0.5mm
• Measuring force: 0.6N
• Bolt travel: 1.25mm
• Bolt retraction: Mechanical
• Repeatability: 0.0001mm
• Hysteresis: 0.00002mm
• Accuracy (L in mm): 0.2 % (for a measuring range of ± 0.5mm)
• Ball insert: Tungsten carbide Ø 3mm
• Cable: 2m, Radial
• IP Rating: IP65
• Standard: DIN 32876

• Measuring bolt mounted on a ball bearing
• Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately
• Guiding is insensitive to any radial force exerted on the measuring bolt

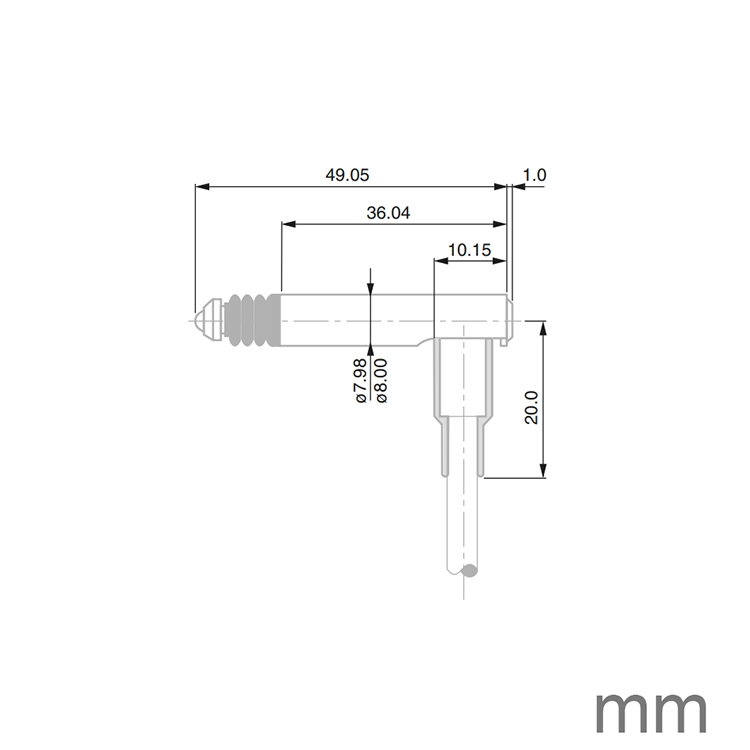

• Ø 8 mm probe housing, can be clamped over its entire length
• The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows

Measurement:

• The measuring inserts can be replaced or exchanged
