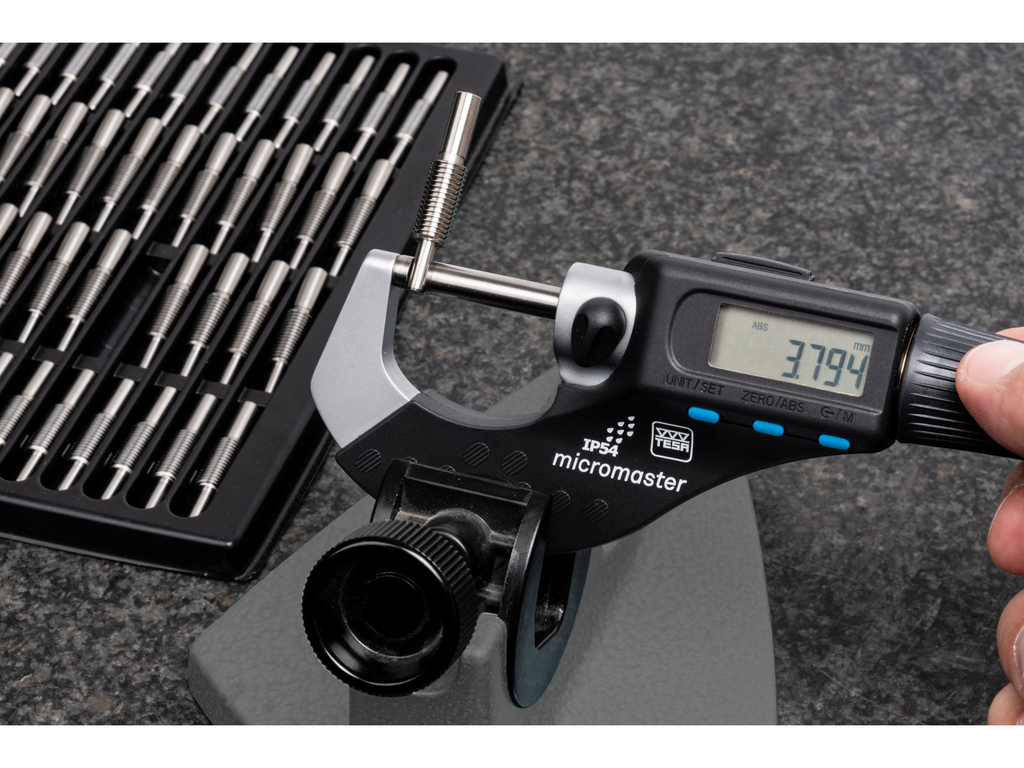

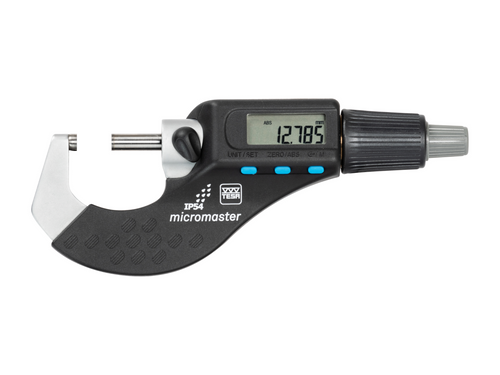

Tesa Digital Micromaster Micrometer 0-30mm
TESA MICROMASTER. Electronic Micrometers with Digital Display.
With patented TESA capa µ system
• Large easy-to-read digital display
• IP54
Specification
| Measuring force | ? 10 N |
| Units | mm / in |
| Standard | DIN 863 T1 |
| Resolution | 0,001 mm / .00005 in |
| Zero | Floating |
| Material | Inserts: tungsten carbide |
| Thread pitch | 0,5 mm |
| Degree of protection | IP54 IP40 (with opto-RS232) |
| Display | LCD Digit size: 7 mm |
| Power supply | CR2032 button battery |
| Function(s) | Standby after 10 min Display locking (except EASY) |
| Autonomy | 2'000 ÷ 4'000 hours |
| Included in delivery | Battery (1x) Measuring report Declaration of conformity |
| Data output(s) | Without opto-RS232 |
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
