Tesa Digital Micromaster Micrometer RS232 Output 06030030

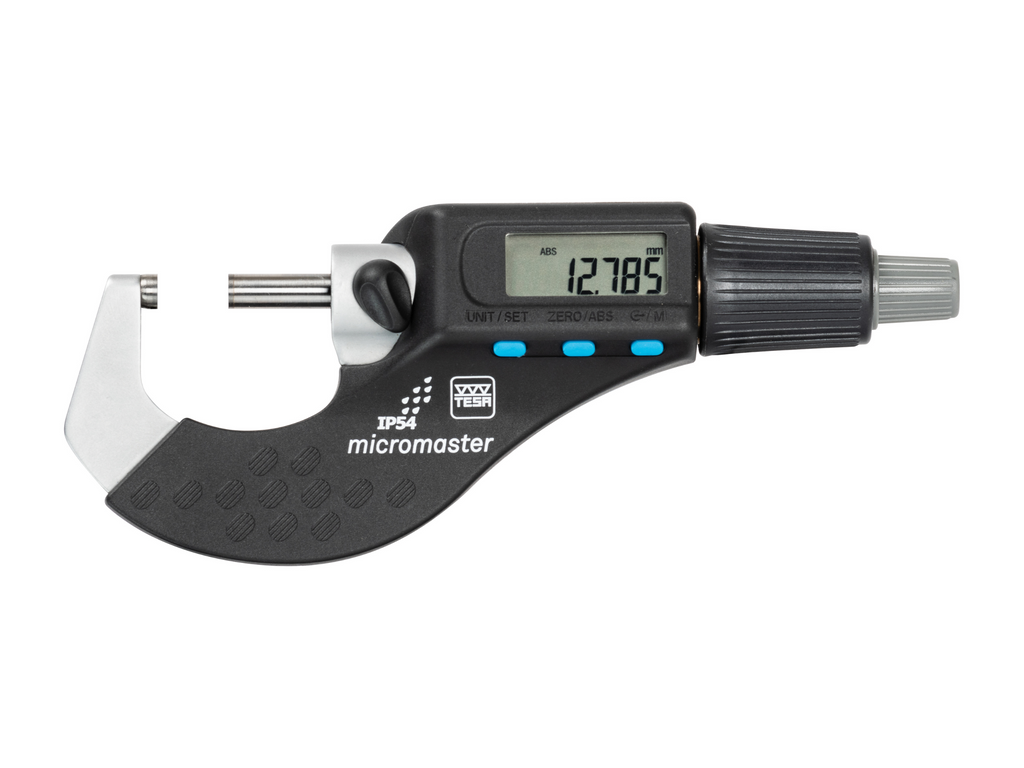

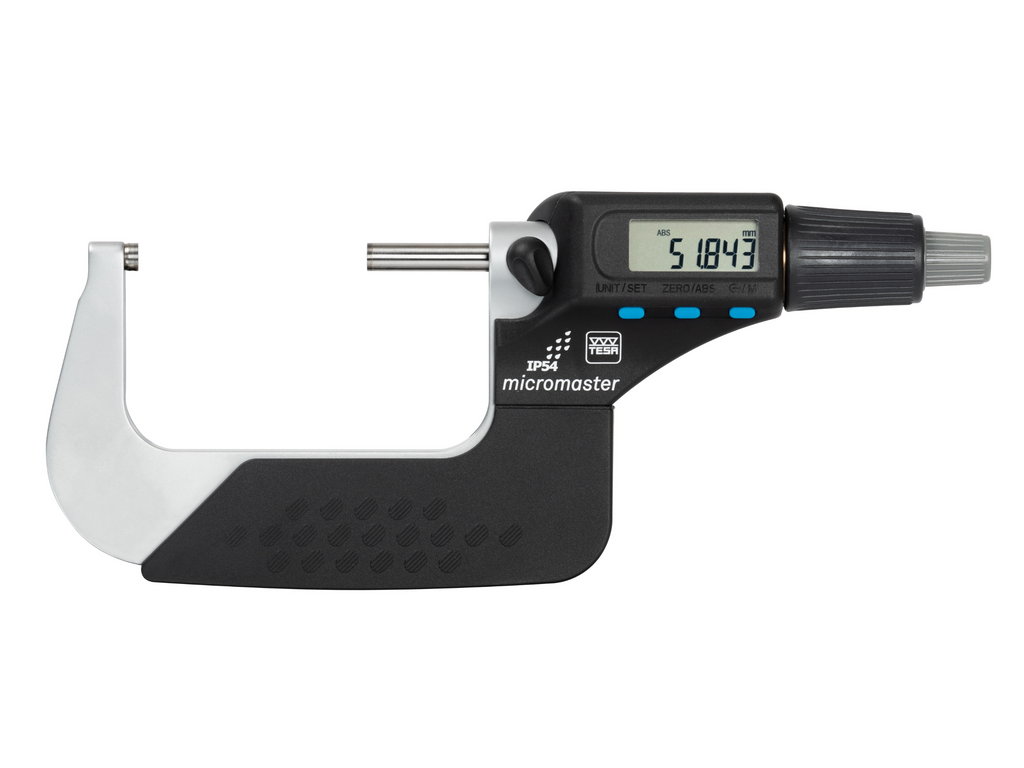

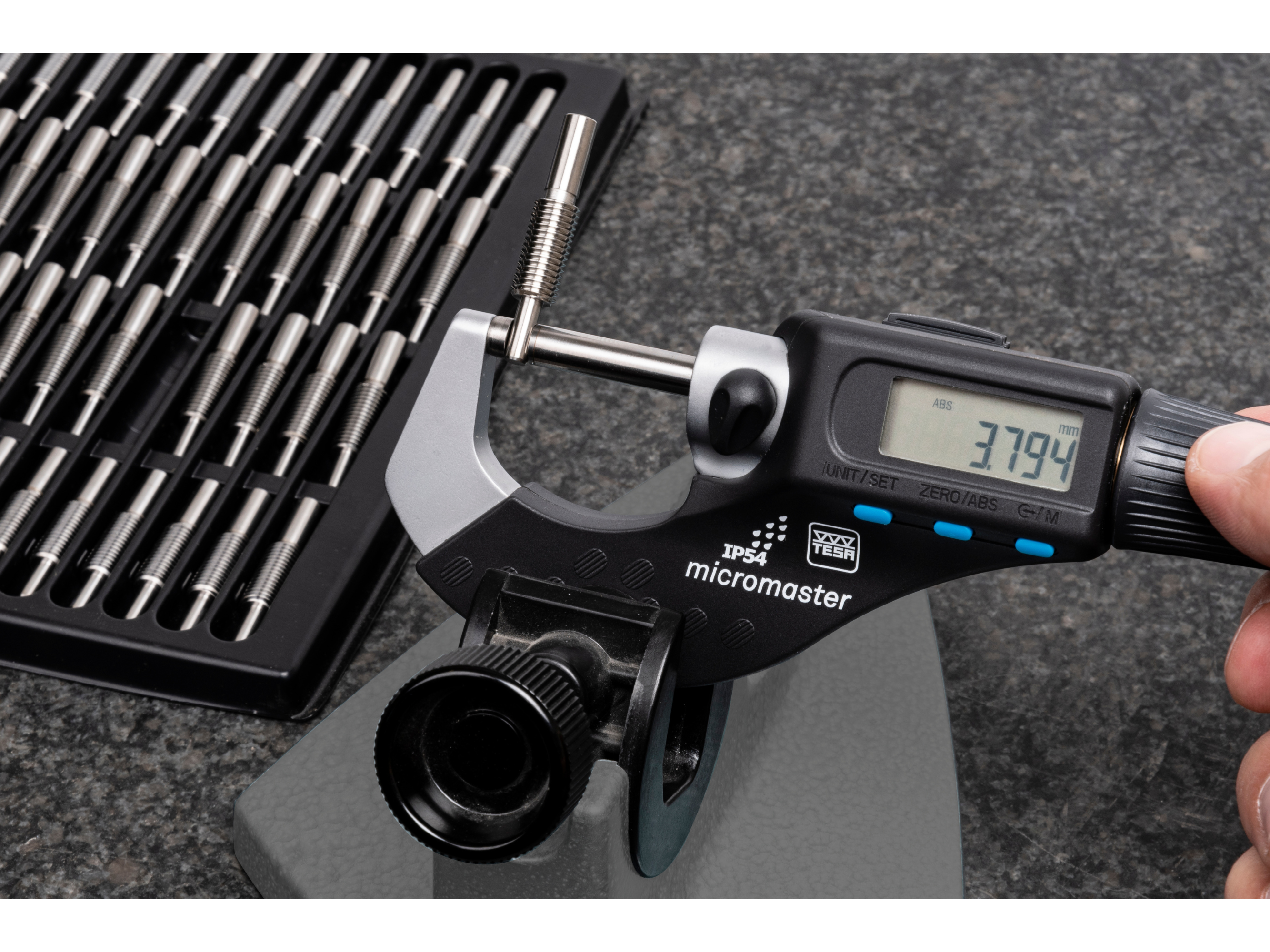

TESA MICROMASTER. Electronic Micrometers with Digital Display.
- With patented TESA capa µ system
- Large easy-to-read digital display
- IP54 RS with added RS 232 interface
Specification
| Measuring force | ? 10 N |
| Units | mm / in |
| Standard | DIN 863 T1 |
| Resolution | 0,001 mm / .00005 in |
| Zero | Floating |
| Material | Inserts: tungsten carbide |
| Thread pitch | 0,5 mm |
| Degree of protection | IP54 IP40 (with opto-RS232) |
| Display | LCD Digit size: 7 mm |
| Power supply | CR2032 button battery |
| Function(s) | Standby after 10 min Display locking (except EASY) |
| Autonomy | 2'000 - 4'000 hours |
| Included in delivery | Battery (1x) Measuring report Declaration of conformity |
| Data output(s) | With or without opto-RS232 |
