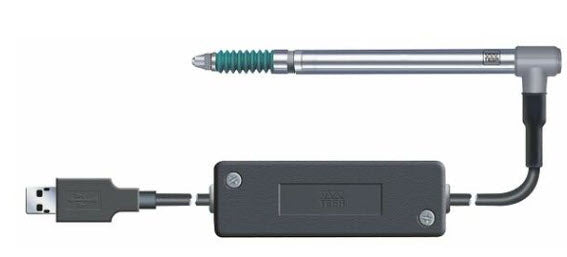

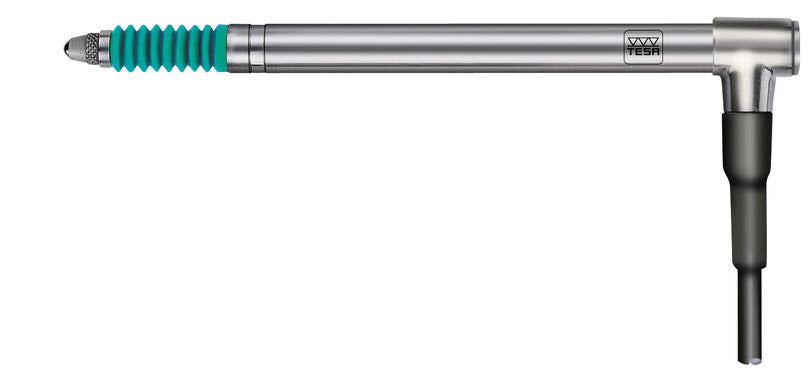

PROBE - USB connectivity - Probes designed for long measuring ranges and low value resolution - Measuring bolt mounted on a ball bearing - Separate guiding from the housing so that the movement of the measuring bolt moves easily even if the probe is not clamped appropriately - Ø 8 mm probe housing, can be clamped over its entire length - The guides are effectively protected against penetration of liquids (oils) or solids (dust) by sealing bellows • MEASUREMENT - No need to use an interface box as it connects directly to a computer's USB port • SOFTWARE - Possibility to manage from 1 to 4 USB probes with free TSIP software downloadable from TESA website - Possibility to manage 4 or more USB probes with DataDirect, StatExpress or DATA-VIEWER software (free) • OTHER - Communication by sending ASCII commands possible

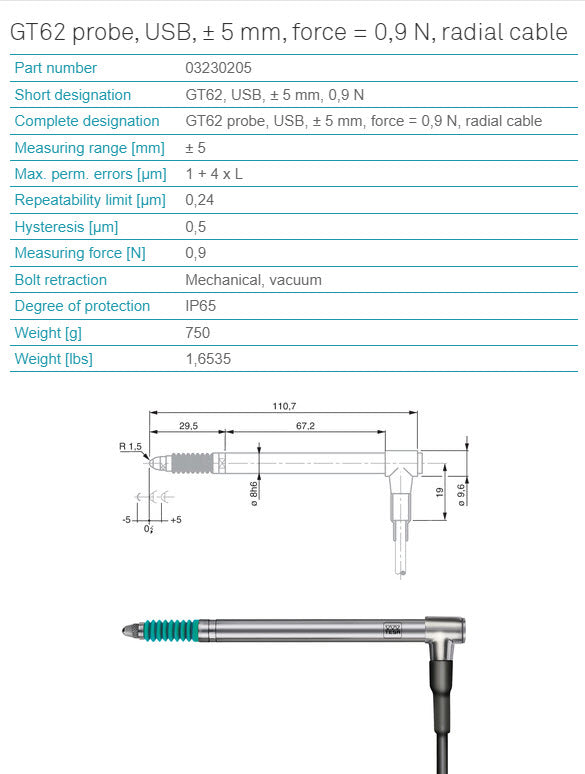

| Hysteresis | 0,5 µm |
| Standard | DIN 32876 |
| Max. perm. errors | L in mm 1 + 4 x L µm |
| Repeatability | 0,24 µm |
| Coefficient of linear expansion | 0,09 µm/°C |
| Material | Fixing shank: nickel plated Measuring bolt: stainless steel Protection bellow: Viton® Ball insert: tungsten carbide |
| Dimensions | Fixing shank: Ø 8 mm Insert thread: M2,5 Ball insert: Ø 3 mm Cable: 2,9 m Connector: USB A type |
| Degree of protection | IP65 |
| Weight | Mobile weight: 8 g |
| Remark(s) | CAD files available on request Downloadable data sheets on www.TESAtechnology.com |
| Included in delivery | Probe Wrench Measurement report User manual Declaration of conformity |
