Click to View the Product Brochure

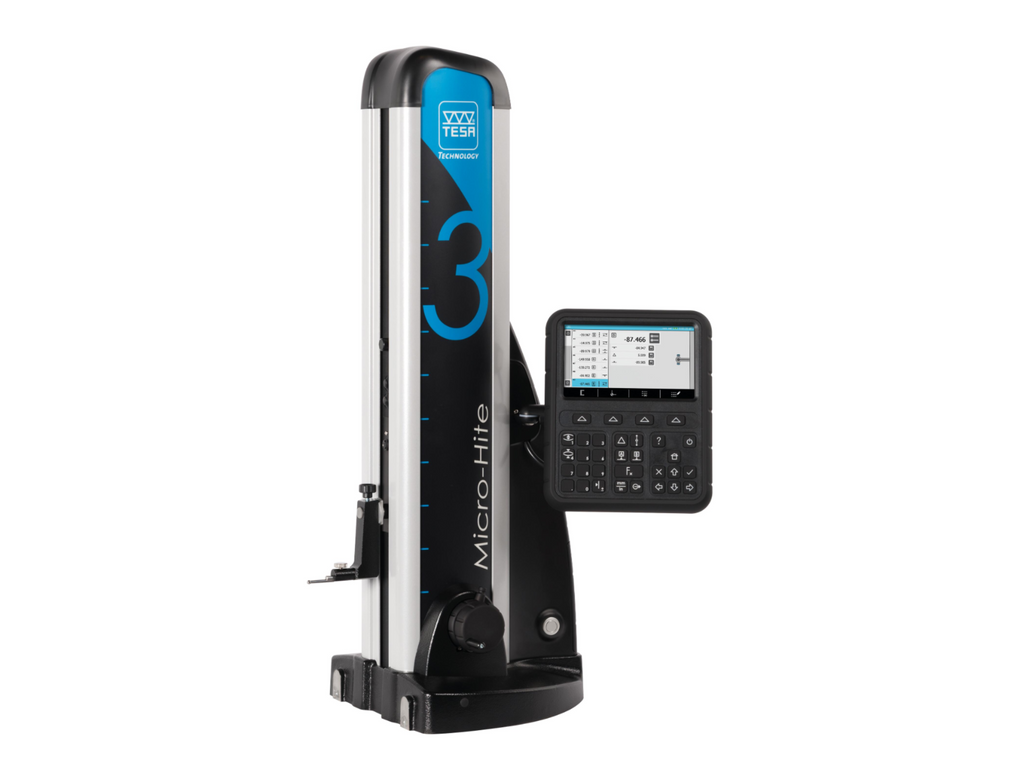

Tesa Micro-Hite Digital Height Gauge With Fine Adjustment
This high-end instrument is intuitive due to the clear and refined user philosophy of its embedded software and allows measurements in 1 or 2-coordinate directions.
A universal machine developed for workshops and laboratories that can be integrated as close as possible to the user. Indeed, the robustness of its cast iron base and frame makes it a reliable instrument that guarantees excellent repeatability and precision in any kind of condition.
With the exception of the 1D basis functions, it is equipped with advanced functions (angle, programming, tolerancing, 2D, ...) and turns it into a metrological “multi-user” asset, that replaces the most conventional measuring tools. With the integrated patented QUICKCENTER technology, the height gauge gives clear indications not only when capturing simple points but also when it becomes a proven advantage for the determination of the culmination points.
Digital Height Gauge Features
- Coefficient of linear expansion: 11.5 x 10-6 K-1
- With fine adjustments
- Zero fixed
- Cast iron base & frame
- Function(s): Manual displacement of the measuring probe
- Autonomy: 8 hours (with a battery block), Infinite (with 2 battery blocks)
- Inch/metric
- SCS calibration certificate included as standard
No technical information is currently available.
No application information is currently available.

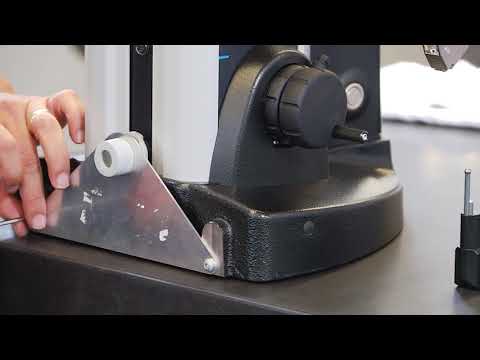

Product Video
