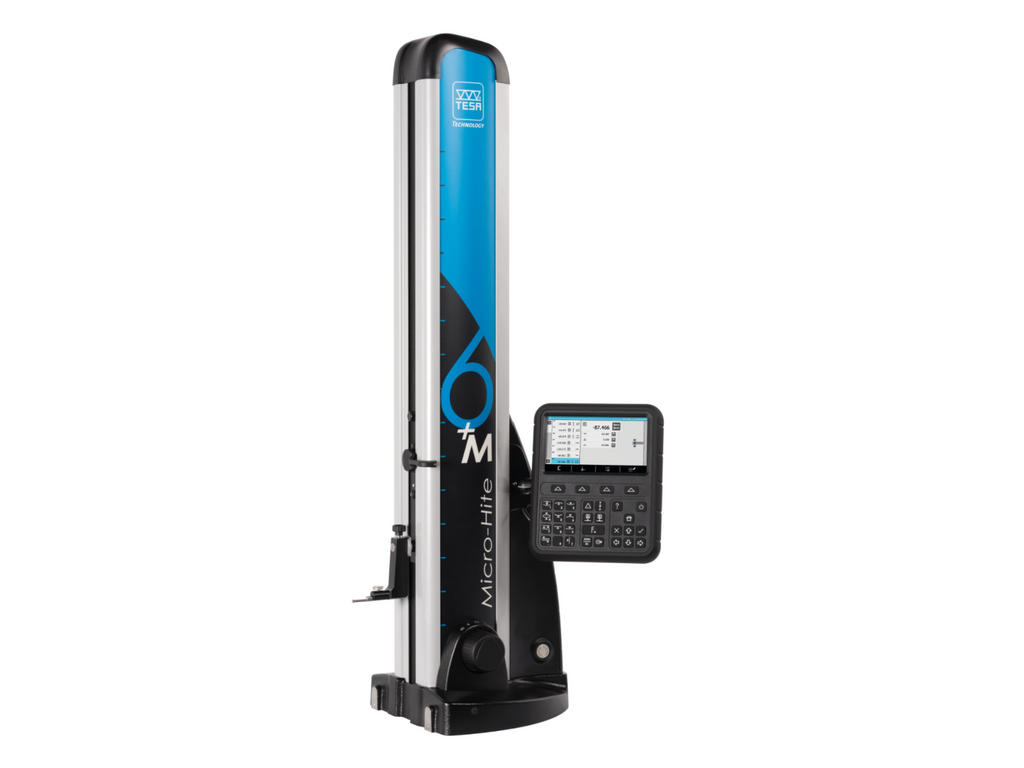

Micro-Hite 600+M Digital Height Gauge 0-600mm/0-24" 00730080 Accuracy .0018mm, 1D and 2D

Tesa Micro-Hite 600+M Digital Height Gauge (0-600mm Range) 00730080

Click to View Product Brochure

The motorised gauge MICRO-HITE+M is distinguished first of all by its exclusive patented hand-wheel for displacement (FEEL&MOVE technology) that combines fast probe positioning with fluid execution of a measurement sequence. Universal machine developed for workshops and for laboratories that can be integrated as close as possible to the user. Indeed, the robustness of its cast iron base and frame make it to a reliable instrument that guarantees an excellent repeatability and precision in any kind of conditions. It is not only equipped with 1D basis functions, but also with advanced measuring modes (angle, programming, 2D, ...) that are welcome when certain metrological requirements become more constraining. With the integrated patented QUICKCENTER technology, the height gauge gives clear indications not only when certain capturing simple points but they become a proven advantage for the determination of the culmination points. Each MICRO-HITE+M is delivered with a free measuring certificate SCS (Swiss Calibration Service) avoiding any additional extra cost due to a re-certification of the instrument directly after purchase.

• Coefficient of linear expansion: 11.5 x 10-6 K-1
• Zero fixed
• Cast iron base & frame
• Function(s): Manual displacement of the measuring probe
• Autonomy: 8 hours (with a battery block), Infinite (with 2 battery blocks)
• Inch/metric
• SCS calibration certificate included as standard
