TESA 00730503 Electronic Height Gauge: 100.00 mm Max, 0.001 & 0.0001 micron Resolution, Axial: 0.00005 Offset: 0.0001" Accuracy 2 micron USB Output

Roll over image to zoom in Click on image to zoom

TESA 00730503 Electronic Height Gauge: 100.00 mm Max, 0.001 & 0.0001 micron Resolution, Axial: 0.00005 Offset: 0.0001" Accuracy 2 micron USB Output

Name: TESA 00730503 Electronic Height Gauge: 100.00 mm Max, 0.001 & 0.0001 micron Resolution, Axial: 0.00005 Offset: 0.0001" Accuracy 2 micron USB Output
Brand: Tesa
SKU: 00730503
Price: 5446.0 GBP
Availability: InStock

TesaSKU: 00730503

List price: £6,808.00 Offer price: £5,446.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +£250.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Overview Technical Information Applications Videos & Documents

TESA µ-HITE 00730503

Click to View Product Brochure

Maximum Measurement (mm): 100.00	Accuracy (Decimal Inch): Axial: 0.00005; Offset: 0.0001/.0025mm
Accuracy (micro m): Axial: 1;Offset: 2	Accuracy (mm): Axial: 0.001mm; Offset: 0.002mm
Resolution (microns): 0.0001; 0.001	Display Type: Touch Screen
Data Output: USB	UNSPSC Code: 41111614

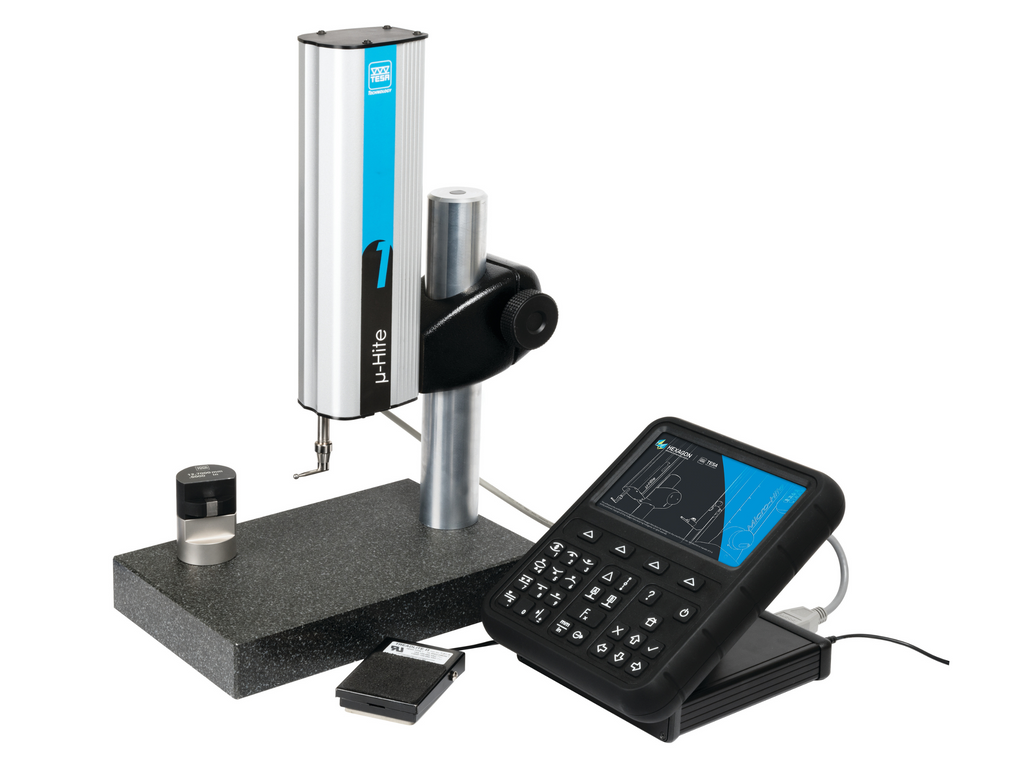

The measuring station TESA µ-HITE is far more than a height gauge. This compact, robust, yet highly accurate instrument is designed for measurement operations in the workshop, close to machining centres, as well as more controlled and secure inspection sites such as laboratories. With its application range of 100 mm this "all-in-one" measuring station is particularly suitable for controlling small parts close to the production. It can even replace the use of conventional 1D probes which have a very limited measuring range and are often dedicated to a single application.

Its use in conjunction with the TESA MICRO-HITE height gauge control panel makes this system a significant advantage when it comes to productivity. Indeed, its' learning' mode coupled with its execution speed can positively impact the output of a production line.

TESA ?-HITE therefore presents itself as a simple access solution but no less effective, flexibility is guaranteed when using a product adapted to a wide range of applications and user profiles.

The Brown and Sharpe TESA 00730503 u-Hite Height Gauge has the following specifications:

Measuring Force: 0.6N
Execution: Motorized
Max Perm error: Axial: 1 , Offset: 2

Features:

PANEL

Hybrid with color touch screen and keyboard
Refined keyboard for easy handling without confusion

MEASUREMENT

Advanced functions (angle, parallelism, 2D, …) for a multi-task instrument, accessible to all users
Context-based online help to avoid incorrect use and bad results
Clear interface to decrease possible errors due to bad interpretation of the displayed results
Flexible since the instrument can be used as 1D probe as well as height gauge

INSTRUMENT

Turnkey solution easy to set up and quickly operational
Its small footprint makes it an instrument that can be integrated and moved in any kind of workshop close to production machines

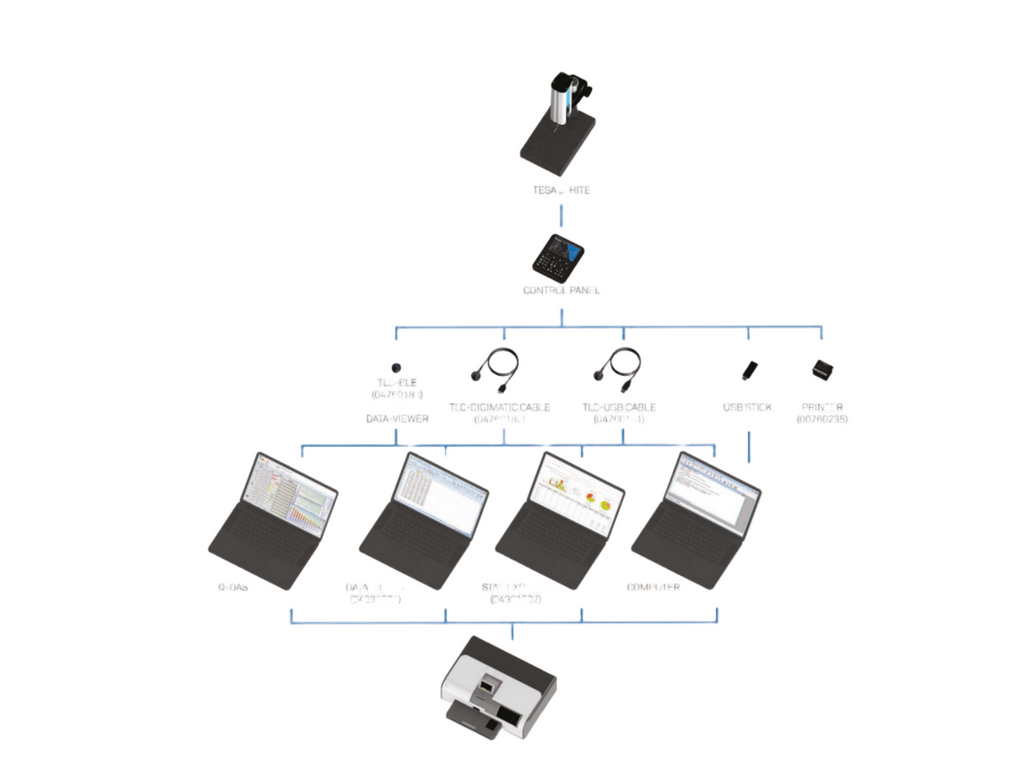

DATA MANAGEMENT

Sending values to computer via TLC port (cable or Bluetooth®)
Automatic creation of pdf reports or txt files on USB stick
Data printing via USB printer

No technical information is currently available.

No application information is currently available.

Product Video

Product Documents

Product Document 2 TESA 00730503 Electronic Height Gauge: 100.00 mm Max, 0.001 & 0.0001 micron Resolution, Axial: 0.00005 Offset: 0.0001" Accuracy 2 micron USB Output Click to open the PDF document
