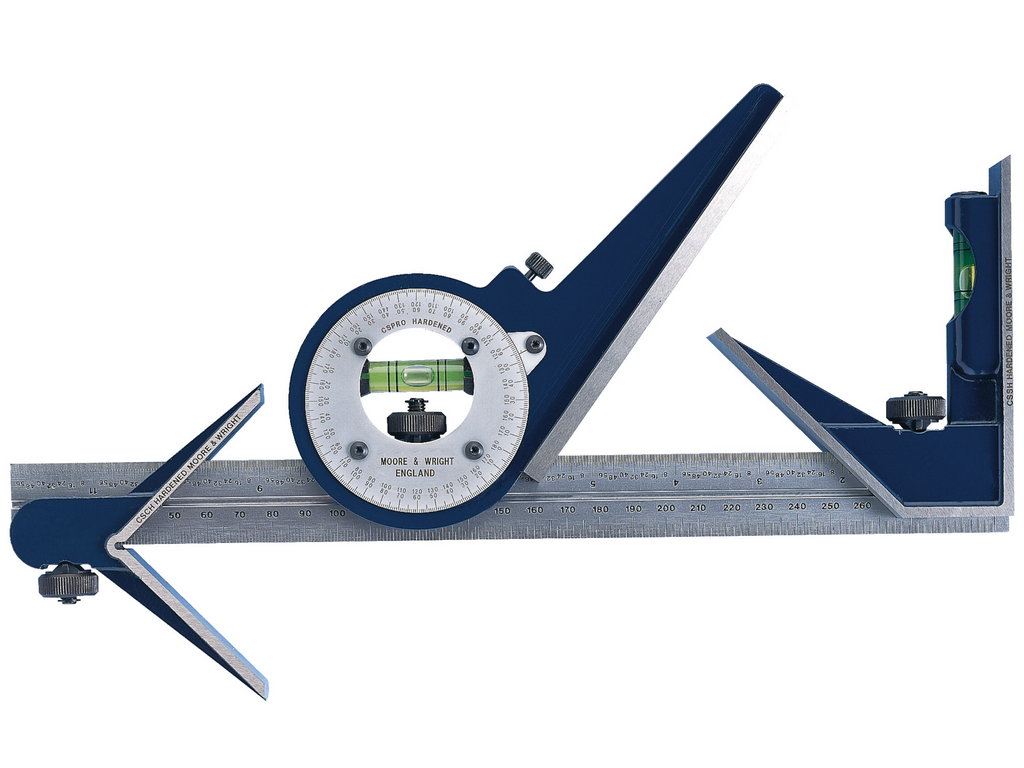

Traditional Combination Set Metric/Imperial

MOORE & WRIGHT TRADITIONAL COMBINATION SET

Metric/Imperial Traditional Precision Combination Set by Moore & Wright.

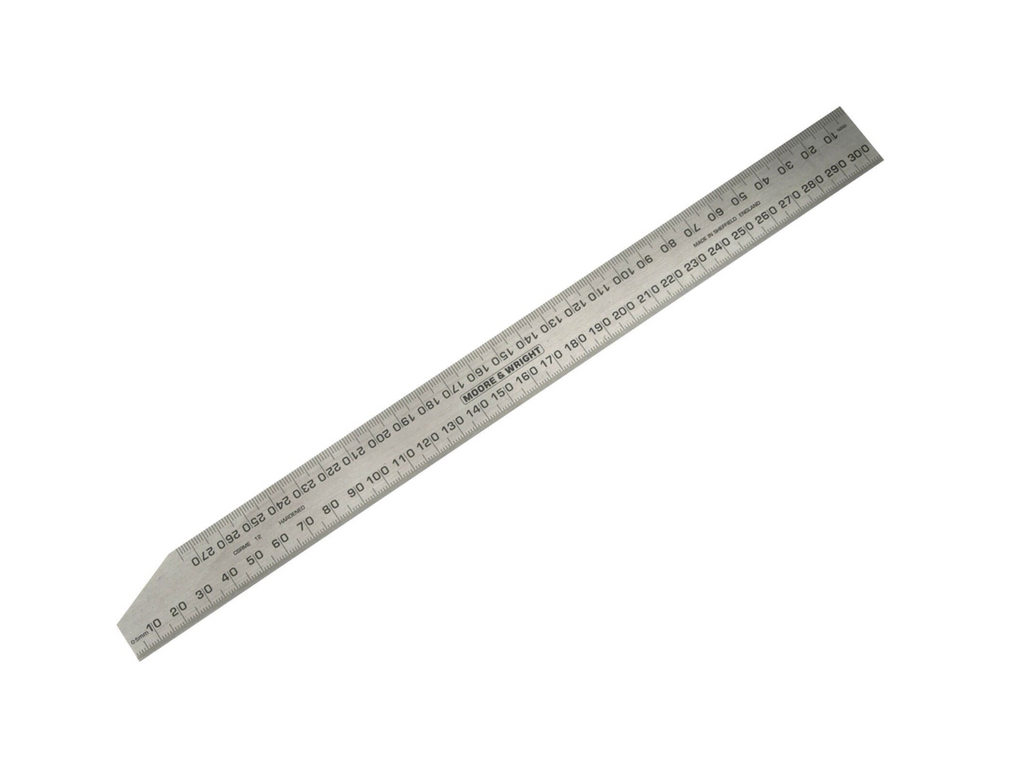

Fully hardened and tempered precision rules with deeply etched graduations on both sides for ease of reading and long life.

FEATURES

• Fully hardened and ground datum faces to resist wear

• Centrally mounted protractor vial allows unrestricted viewing
• Protractor has full 360° scale plate, graduated 0 - 180° - 0
• Satin chrome scale plate on protractor
• Unique rule clamp allows positive location and clamping
• Square head offers the following fixed angles: 15°, 30°, 45°, 60°, 75° & 90°
• Centre head offers a fixed 90° angle, for finding the centre of round bar stock up to 120mm diameter
• Clipped corner on rule to maximise capability

All images are for representation only.
