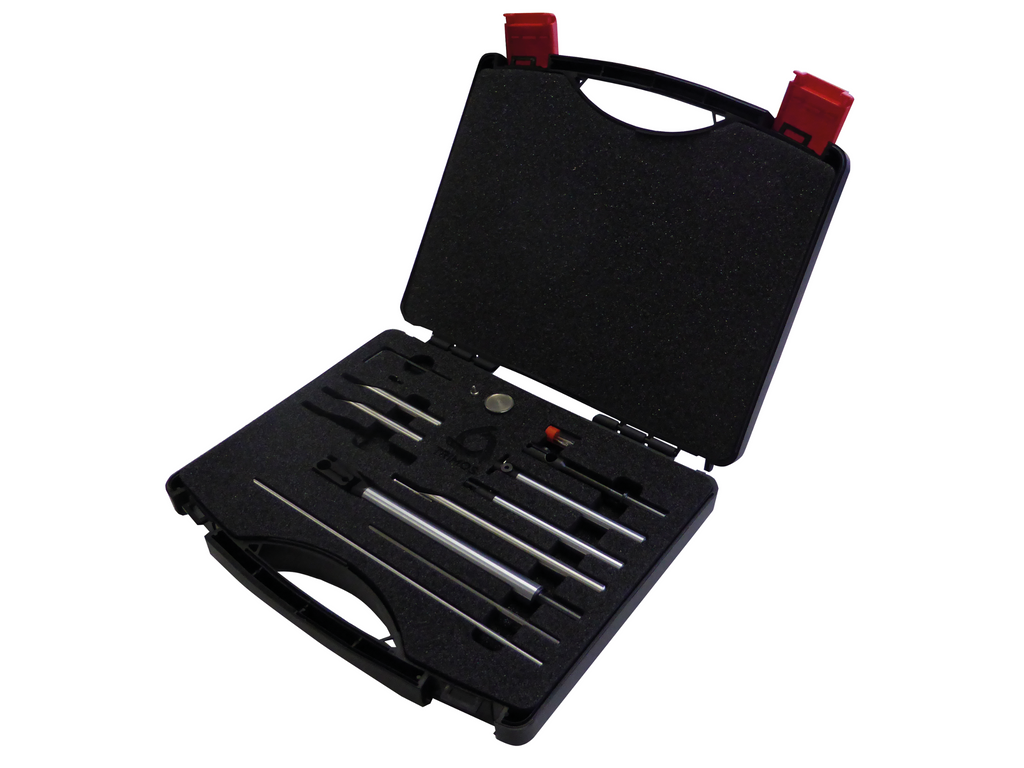

MACRO TRIMOS HEIGHT GAUGE ACCESSORIES SET 20-TA-SE-106
Macro accessories set compatible with a variety of Trimos height gauges including the V3, V4, V5, V6, V7 and V8.
Set includes:
- TA-MI-115, Measuring insert M1.4 with ball Ø1 mm, L=12.5 mm
- TA-MI-116, Measuring insert M1.4 with ball Ø2 mm, L=12.5 mm
- TA-MI-117, Measuring insert M1.4 with ball Ø3 mm, L=12.5 mm
- V-50.5, Measuring insert holder M2.5, L=124 mm
- -IH-115, Measuring insert holder M2.5, L=200 mm
- V-50.2.3, Disc-shaped inserts M2.5, Ø18 mm
- V-50.4, Measuring insert M2,5 with ball contact
- V-50.15, Allen key 2.5 mm
- V-50.13, Wrench for measuring inserts
- TA-MI-110, Measuring insert with tungst. carb. ball Ø2 mm, L=80mm
- TA-MI-105, Measuring insert with tungst. carb. ball Ø4 mm, L=140mm
- TA-MI-107, Measuring insert with pin Ø1.5 mm, L=78 mm
- TVA4, Insert holder with pin Ø2 x 20 mm
- TA-IH-101, Measuring insert holder M2.5, L=103 mm
- TA-IH-105, Swivel holder Ø4 and Ø8 mm, L=150 mm
- TA-IH-109, Insert holder 90°, Ø4 mm L=65mm
