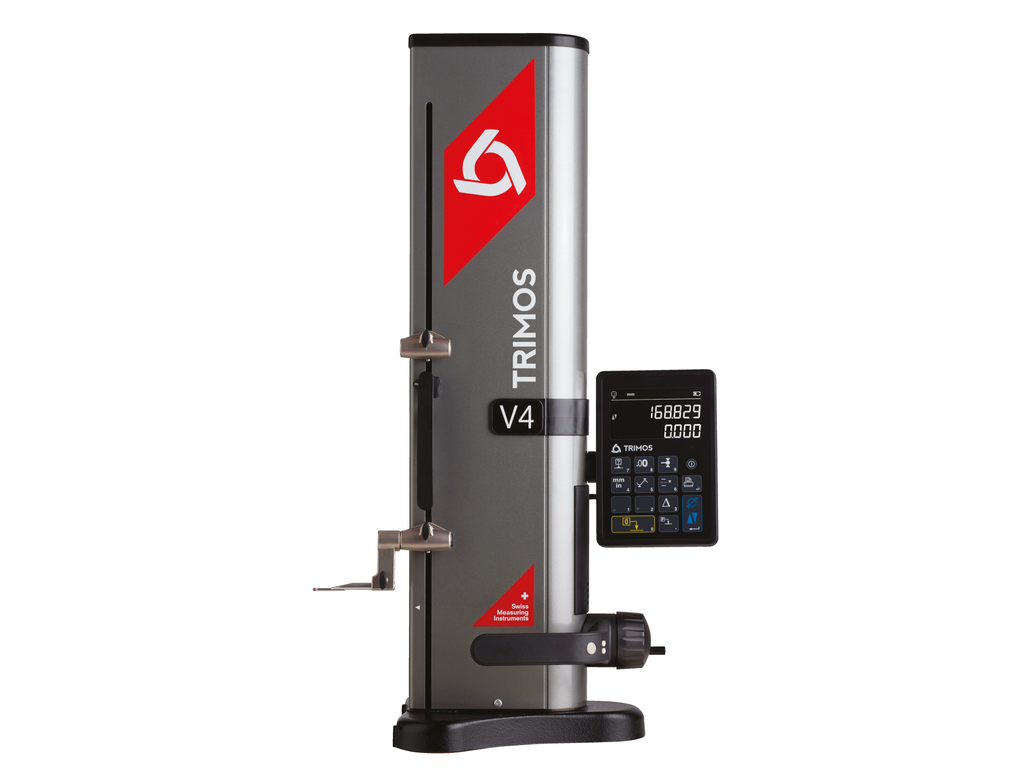

TRIMOS V4RF (Fine Adjust) BASIC MANUAL HEIGHT GAUGE
The display unit provides functions that are directly accessible and depicted with symbols that are easy to understand. This allows for easy and quick handling even by unqualified personnel. The large 2-line 'Black Mask' display offers an exceptional contrast in all lighting conditions, a unique characteristic on the market.
The V3 measuring column represents the entry-level Trimos universal measuring column, benefiting from the very latest in product development. The V4 offers the same functions as the V3. In addition, it is equipped with a second probe holder as well as an air cushion for easy displacement on the measuring table. The programmable functions buttons on the handle allow quick access to the most used functions.
The V3 measuring column represents the entry-level Trimos universal measuring column, benefiting from the very latest in product development. The V4 offers the same functions as the V3. In addition, it is equipped with a second probe holder as well as an air cushion for easy displacement on the measuring table. The programmable functions buttons on the handle allow quick access to the most used functions.
- Measuring range: 400mm
- Resolution 0.001mm/0.00005"
- Accuracy 4.5 µm
- Extremely easy to use
- Electronically adjustable measuring force
- Autonomy: 40 h (lithium-ion batteries)
- Larger than 300 mm probes as standard
- Vast range of accessories
- All adjustments possible without tools
- RS232 and USB interfaces
