Tube Micrometer Pin Anvil Flat Spindle, 0-1" 115-305

Roll over image to zoom in Click on image to zoom

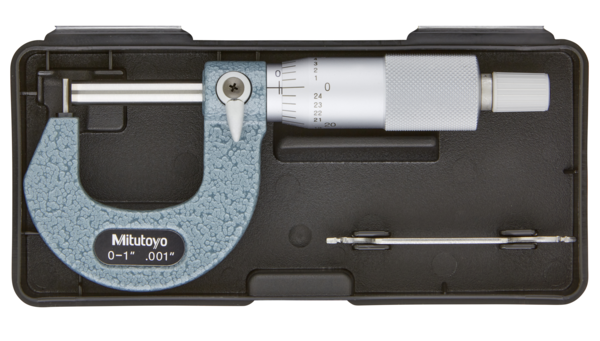

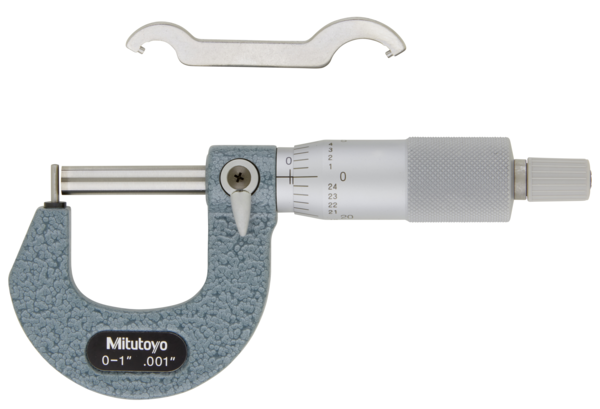

Tube Micrometer Pin Anvil Flat Spindle, 0-1" 115-305

Name: Tube Micrometer Pin Anvil Flat Spindle, 0-1" 115-305
Brand: Mitutoyo
SKU: 115-305
Price: 89.0 GBP
Availability: InStock

MitutoyoSKU: 115-305

List price: £122.00 Offer price: £89.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +£20.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10 +£41.00 Part number: 156-101-10 → View product

Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10 +£31.00 Part number: 156-105-10 → View product

MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm +£595.00 Part number: MMI-10 → View product

MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm +£495.00 Part number: MMi-8 → View product

Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0 +£492.00 Part number: 516-106-10 → View product

Recommended Alternatives

Select an alternative below to view its full details.

Sort alternatives Choose price or brand order

Insize Tube Micrometer Micrometer: 0-1" 3261-1 Style ABrand: InsizeSKU: 3261-1 Price: £95.00 View this alternative →

Tube Micrometer Cylindrical Anvil Flat Spindle, 0-1" 115-313Brand: MitutoyoSKU: 115-313 Price: £119.00 View this alternative →

Tube Micrometer Cylindrical Anvil Flat Spindle, 0-1" 115-314Brand: MitutoyoSKU: 115-314 Price: £119.00 View this alternative →

Overview Technical Information Applications Videos & Documents

Mitutoyo; Tube Micrometer

A Mitutoyo non-digital tube micrometer equipped with a pin anvil on a post for making wall thickness measurements on tubes and pipes. A ratchet stop guarantees repeatable measurement.

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Tube Micrometer Pin Anvil Flat Spindle, 0-1" 115-305 Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Inch
Range:	0 - 1 "
Graduation:	0,001"
Max. Permissible Error J MPE:	±0,00015"
Flatness:	0,000024"
Measuring face:	Spindle and anvil: carbide-tipped, micro-lap finish (115-1xx, 115-2xx) spindle: carbide-tipped, micro-lap finish anvil: hardened steel (115-3xx)
Anvil / Spindle:	Type A, pin D=1.8 mm/ flat spindle
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	180 g
