Tube Micrometer Pin Anvil Flat Spindle, 25-50mm 115-303

Roll over image to zoom in Click on image to zoom

Tube Micrometer Pin Anvil Flat Spindle, 25-50mm 115-303

Name: Tube Micrometer Pin Anvil Flat Spindle, 25-50mm 115-303
Brand: Mitutoyo
SKU: 115-303
Price: 98.0 GBP
Availability: InStock

MitutoyoSKU: 115-303

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£98.00 £134.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Mitutoyo; Tube Micrometer

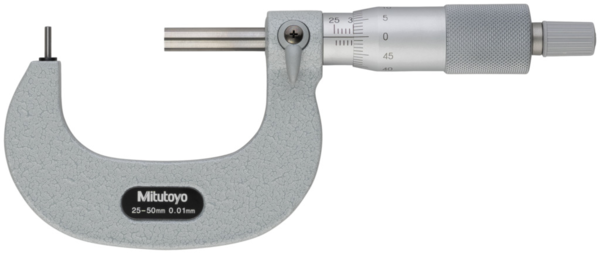

A Mitutoyo non-digital tube micrometer equipped with a pin anvil on a post for making wall thickness measurements on tubes and pipes. A ratchet stop guarantees repeatable measurement.

Product Information
Part Number	115-303
Measuring Ranges	25-50mm
Graduation	.01mm
Unit of Measurement	Metric
Measuring Force	5-10N
Type	Tube
Constant Force Device	Ratchet Stop
Flatness	.0006mm
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	25 - 50 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±3 µm
Flatness:	0,6 µm
Measuring face:	Spindle and anvil: carbide-tipped, micro-lap finish (115-1xx, 115-2xx) spindle: carbide-tipped, micro-lap finish anvil: hardened steel (115-3xx)
Anvil / Spindle:	Type A, pin D=1.8 mm/ flat spindle
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N

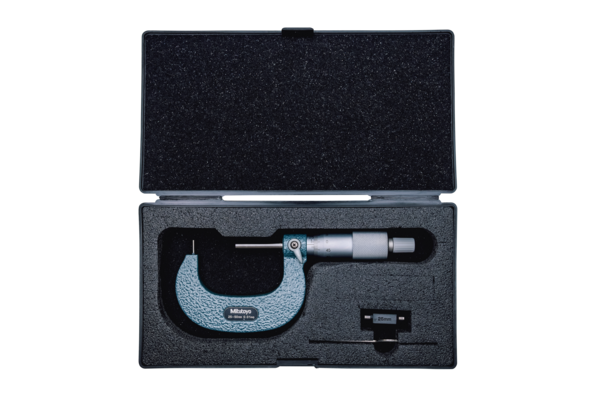

Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	240 g
