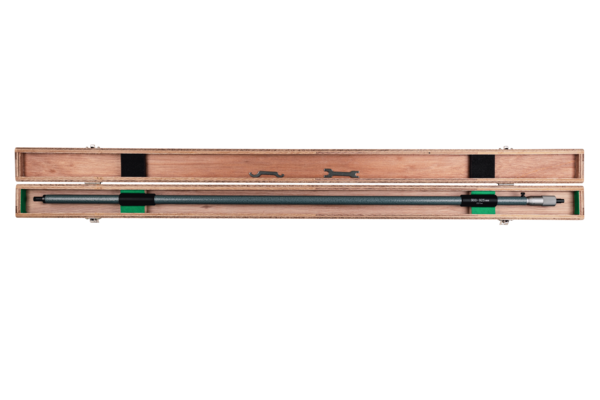

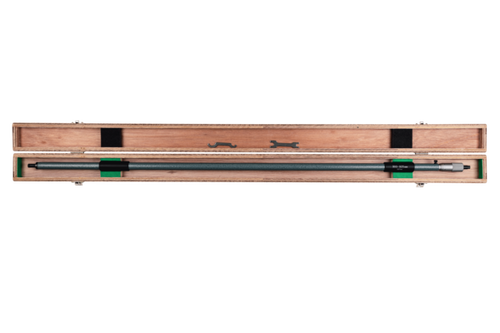

Tubular Inside Micrometer 900-925mm 133-177

Name: Tubular Inside Micrometer 900-925mm 133-177
Brand: Mitutoyo
SKU: 133-177
Price: 190.0 GBP
Availability: InStock

MitutoyoSKU: 133-177

All prices exclude VAT, which will be added at checkout.

Price:

£190.00 £280.00

Quantity:

This is a standard single rod type inside micrometer (individual unit), with the following features:

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	133-177
Measuring Ranges	900-925mm
Unit of Measurement	Metric
Display Type	Analogue
Type	Tubular Inside Micrometer (Stick Mic)
Measurement L	900mm
Measurement B	15mm
Measurement A	18mm
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	900 - 925 mm
Graduation:	0.01mm
Max. Permissible Error J MPE:	±15 µm
Scale:	Thimble and sleeve satin chrome finish, Ø18 mm
Measuring spindle:	With spindle lock (except 50-75 mm), spindle pitch 0,5 mm
Measuring face:	Carbide tipped
Measuring method:	2-point
Delivered:	Including box, insulation (from 100 mm), key
Delivered:	Including box and spanner
Mass:	620 g
