Tubular Inside Micrometer, Hardened Face 2-20" 137-213

Name: Tubular Inside Micrometer, Hardened Face 2-20" 137-213
Brand: Mitutoyo
SKU: 137-213
Price: 263.2 GBP
Availability: InStock

MitutoyoSKU: 137-213

All prices exclude VAT, which will be added at checkout.

Price:

£263.20 £376.00

Quantity:

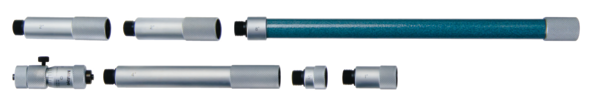

This is an extension rod type inside micrometer that offers you the following benefits:

Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide measuring faces are available.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	137-213
Measuring Range	2-20"
Unit of Measurement	Inch
Display Type	Analogue
Graduation on Thimble	.001"
Micrometer Head Stroke	.5"
Main Unit	2-2.5"
Product Description	Analogue Extension Tube Inside Micrometer

Digital/Analog:	Analog
Inch-Metric:	Inch
Range:	2 - 20 "
Measuring span:	0.5"
Graduation:	0.001"
Limit of error:	±(0,00015+0,00005xnumber of rods+0,00005(max. measurement length/2))"
Scale:	Thimble and sleeve satin chrome finish, ø15 mm
Measuring spindle:	Spindle pitch 0,025" mm
Measuring face:	Hardened steel
Measuring method:	2-point
Extension rods:	6 (0.5, 1, 2 (2 pcs.), 4, 8")
Delivered:	Including box, key, extensions, micrometer head
Delivered:	Including box, spanner, extension rods (6 pcs.), micrometer head 137-012
Spindle feed error:	0.00015 inch
Mass:	460 g
