Tubular Inside Micrometer, Hardened Face 2-40" 137-214

MitutoyoSKU: 137-214
List price: £529.00 Offer price: £391.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

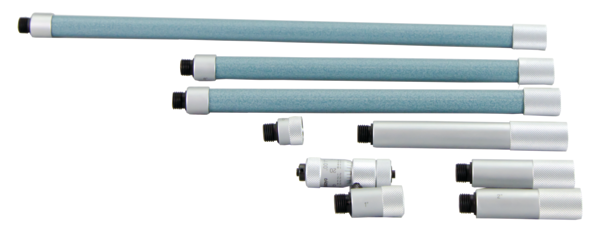

This is an extension rod type inside micrometer that offers you the following benefits:
  • Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
  • Carbide measuring faces are available.
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Range:
2 - 40 "
Measuring span:
0.5"
Graduation:
0.001"
Limit of error:
±(0,00015+0,00005xnumber of rods+0,00005(max. measurement length/2))"
Scale:
Thimble and sleeve satin chrome finish, ø15 mm
Measuring spindle:
Spindle pitch 0,025" mm
Measuring face:
Hardened steel
Measuring method:
2-point
Extension rods:
8 (0.5, 1, 2 (2 pcs.), 4, 8 (2 pcs.), 12")
Delivered:
Including box, key, extensions, micrometer head
Delivered:
Including box, spanner, extension rods (8 pcs.), micrometer head 137-012
Spindle feed error:
0.00015 inch
Mass:
845 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Tubular Inside Micrometer, Hardened Face 2-40" 137-214 Click to open the PDF document
