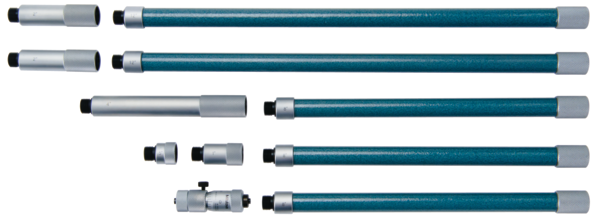

Name: Tubular Inside Micrometer, Hardened Face 2-60" 137-215
Brand: Mitutoyo
SKU: 137-215
Price: 508.0 GBP
Availability: InStock

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

This is an extension rod type inside micrometer that offers you the following benefits:

Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide measuring faces are available.

No technical information is currently available.

No application information is currently available.

Product Document Tubular Inside Micrometer, Hardened Face 2-60" 137-215 Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Experienced engineers helping you select the correct measuring solution.

✔️

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation, commissioning and operator training available.

🤝

Technical support, servicing, repairs and ongoing customer care.

Digital/Analog:	Analog
Inch-Metric:	Inch
Range:	2 - 60 "
Measuring span:	0.5"
Graduation:	0.001"
Limit of error:	±(0,00015+0,00005xnumber of rods+0,00005(max. measurement length/2))"
Scale:	Thimble and sleeve satin chrome finish, ø15 mm
Measuring spindle:	Spindle pitch 0,025" mm
Measuring face:	Hardened steel
Measuring method:	2-point
Extension rods:	10 (0.5, 1, 2 (2 pcs.), 4, 8 (3 pcs.), 12" (2 pcs.))
Delivered:	Including box, key, extensions, micrometer head
Delivered:	Including box, spanner, extension rods (10 pcs.), micrometer head 137-012
Spindle feed error:	0.00015 inch
Mass:	1225 g

Tubular Inside Micrometer, Hardened Face 2-60" 137-215
