Welcome to MQS-Shop, your one-stop online store for metrology products and a UKAS accredited calibration laboratory No. 0373.

Tubular Inside Micrometer, Hardened Face 50-1000mm 137-204

Roll over image to zoom in Click on image to zoom

Tubular Inside Micrometer, Hardened Face 50-1000mm 137-204

Name: Tubular Inside Micrometer, Hardened Face 50-1000mm 137-204
Brand: Mitutoyo
SKU: 137-204
Price: 355.6 GBP
Availability: InStock

MitutoyoSKU: 137-204

All prices exclude VAT, which will be added at checkout.

Price:

£355.60 £508.00

Quantity:

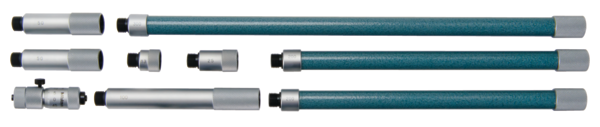

This is an extension rod type inside micrometer that offers you the following benefits:

Interchangeable extensions with cylindrical guage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide measuring faces are available.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	137-204
Measuring Range	50-1000mm
Unit of Measurement	Metric
Display Type	Analogue
Graduation on Thimble	.01mm
Micrometer Head Stroke	13mm
Main Unit	50-63mm
Product Description	Analogue Extension Tube Inside Micrometer

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	50 - 1,000 mm
Measuring span:	13 mm
Graduation:	0.01 mm
Spindle feed error:	3 µm
Limit of error:	±(3+number of rods+max. measurement length/50) µm
Scale:	Thimble and sleeve satin chrome finish, ø15 mm
Measuring spindle:	Spindle pitch 0,5 mm
Measuring face:	Hardened steel
Measuring method:	2-point
Extension rods:	8 (13, 25, 50 (2 pcs.), 100, 200 (2 pcs.), 300 mm)
Delivered:	Including box, key, micrometer head
Delivered:	Including box, spanner, extension rods (8 pcs.), micrometer head 137-011
Mass:	845 g
