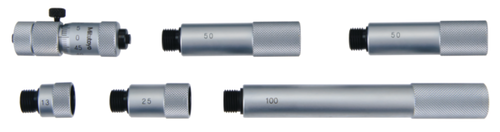

Tubular Inside Micrometer, Hardened Face 50-300mm 137-202

Roll over image to zoom in Click on image to zoom

Tubular Inside Micrometer, Hardened Face 50-300mm 137-202

Name: Tubular Inside Micrometer, Hardened Face 50-300mm 137-202
Brand: Mitutoyo
SKU: 137-202
Price: 232.0 GBP
Availability: InStock

MitutoyoSKU: 137-202

List price: £318.00 Offer price: £232.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +£130.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Recommended Alternative

Select an alternative below to view its full details.

Inspec Inside Micrometer 301-13-050 Range 50-300mmBrand: InspecSKU: 301-13-050 Price: £88.00 View this alternative →

Overview Technical Information Applications Videos & Documents

This is an extension rod type inside micrometer that offers you the following benefits:

Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide measuring faces are available see 137-207

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Tubular Inside Micrometer, Hardened Face 50-300mm 137-202 Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	50 - 300 mm
Measuring span:	13 mm
Graduation:	0.01 mm
Spindle feed error:	3 µm
Limit of error:	±(3+number of rods+max. measurement length/50) µm
Scale:	Thimble and sleeve satin chrome finish, ø15 mm
Measuring spindle:	Spindle pitch 0,5 mm
Measuring face:	Hardened steel
Measuring method:	2-point
Extension rods:	5 (13, 25, 50 (2 pcs.), 100 mm)
Delivered:	Including box, key, micrometer head
Delivered:	Including box, spanner, extension rods (5 pcs.), micrometer head 137-011
Mass:	305 g
