Tubular Inside Micrometer, 50-300mm 137-207, Carbide Measuring Faces

Roll over image to zoom in Click on image to zoom

Tubular Inside Micrometer, 50-300mm 137-207, Carbide Measuring Faces

Name: Tubular Inside Micrometer, 50-300mm 137-207, Carbide Measuring Faces
Brand: Mitutoyo
SKU: 137-207
Price: 259.0 GBP
Availability: InStock

MitutoyoSKU: 137-207

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£259.00 £355.00

Quantity:

All prices exclude VAT, which will be added at checkout.

This is an extension rod type inside micrometer that offers you the following benefits:

Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide Measuring Faces

Product Information
Part Number	137-207
Measuring Ranges	50-300mm
Unit of Measurement	Metric
Display Type	Analogue
Micrometer Head Stroke	13mm
Main Unit	50-63mm
Product Description	Analogue Extension Tube Inside Micrometer
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	50 - 300 mm
Measuring span:	13 mm
Graduation:	0.01 mm
Spindle feed error:	3 µm
Limit of error:	±(3+number of rods+max. measurement length/50) µm
Scale:	Thimble and sleeve satin chrome finish, ø15 mm
Measuring spindle:	Spindle pitch 0,5 mm
Measuring face:	Carbide measuring faces
Measuring method:	2-point

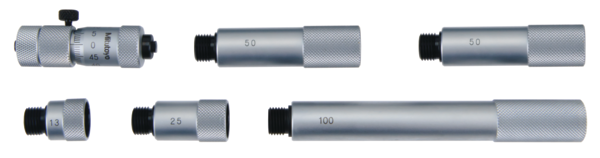

Extension rods:	5 (13, 25, 50 (2 pcs.), 100 mm)
Delivered:	Including box, key, micrometer head
Delivered:	Including box, spanner, extension rods (5 pcs.), micrometer head 137-011
Mass:	305 g
