Tubular Inside Micrometer with Extension 100-2100mm 139-177

Mitutoyo; Inside (Stick) Micrometer

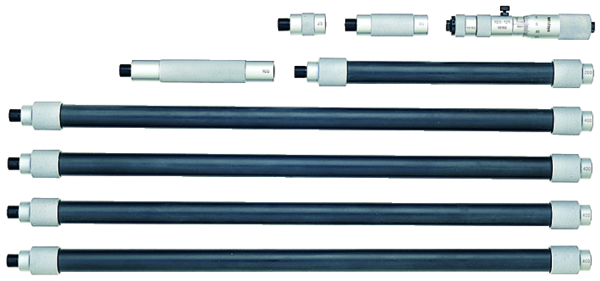

A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable extension tubes that can be used singly or in combination. The micrometer head is satin-chrome finished.

Features

• Digital/Analog: Analog
• Inch-Metric: Metric
• Range: 100 - 2100 mm
• Measuring span: 25 mm
• Graduation: 0.01 mm
• Spindle feed error: 3 µm
• Limit of error: ±(3+number of rods+max. measurement length/50) µm
• Scale: Thimble and sleeve satin chrome finish, ø18 mm ø13 mm (139-203, 139-204)
• Measuring spindle: Spindle pitch 0.5 mm
• Measuring face: Carbide
• Measuring method: 2-point
• Extension rods: 8 (25, 50, 100, 200, 400 mm (4 pcs.))
• Delivered: Including box, key, extensions, micrometer head
• Mass: 490 g

All images are for representation only.
