MitutoyoSKU: 139-173
List price: £615.00 Offer price: £449.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

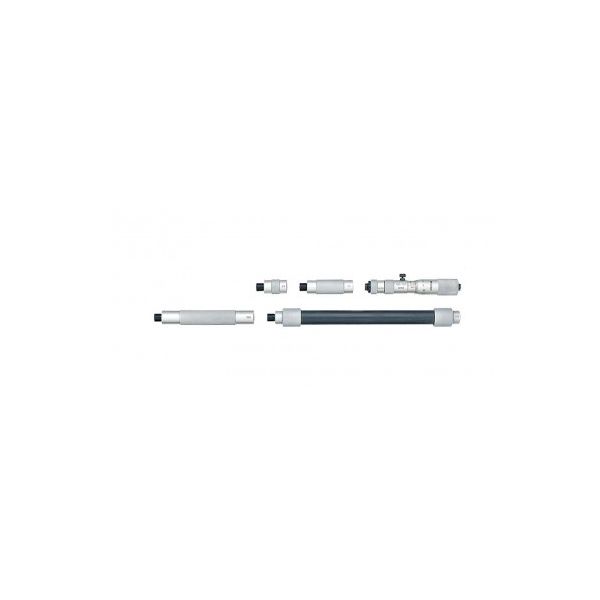

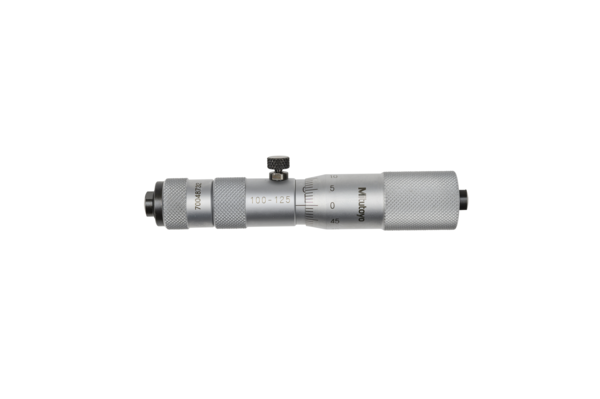

A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable extension tubes that can be used singly or in combination. The micrometer head is satin-chrome finished.
Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
100 - 500 mm
Measuring span:
25 mm
Graduation:
0.01 mm
Spindle feed error:
3 µm
Limit of error:
±(3+number of rods+max. measurement length/50) µm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
ø13 mm (139-203, 139-204)
Measuring spindle:
Spindle pitch 0.5 mm
Measuring face:
Carbide
Measuring method:
2-point
Extension rods:
4 (25, 50, 100, 200 mm)
Delivered:

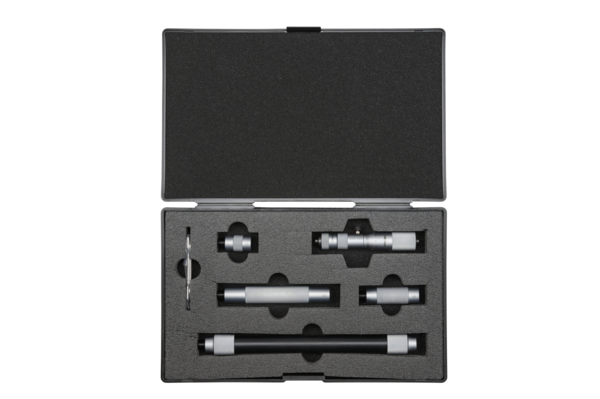

Including box, key, extensions, micrometer head
Delivered:
Including box, spanner, extension rods (4 pcs.), micrometer head 139-001
Mass:
490 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Tubular Inside Micrometer with Extension 100-500mm 139-173 Click to open the PDF document
