Tubular Inside Micrometer with Extension 100-900mm 139-174

MitutoyoSKU: 139-174
List price: £685.00 Offer price: £500.00 Excluding VAT

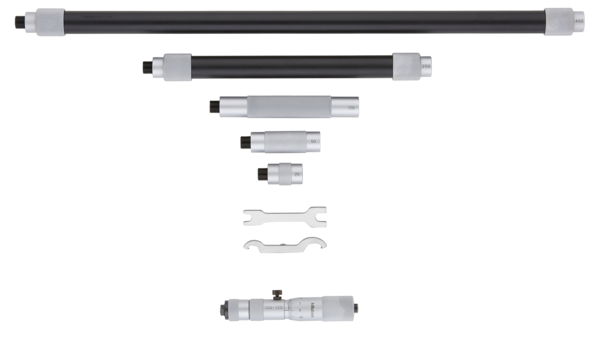

A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable extension tubes that can be used singly or in combination. The micrometer head is satin-chrome finished.
Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
100 - 900 mm
Measuring span:
25 mm
Graduation:
0.01 mm
Spindle feed error:
3 µm
Limit of error:
±(3+number of rods+max. measurement length/50) µm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
ø13 mm (139-203, 139-204)
Measuring spindle:
Spindle pitch 0.5 mm
Measuring face:
Carbide
Measuring method:
2-point
Extension rods:
5 (25, 50, 100, 200, 400 mm)
Delivered:

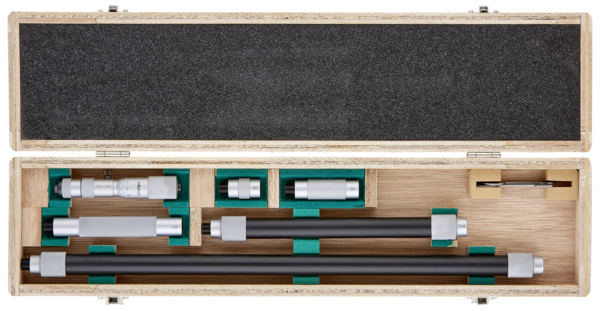

Including box, key, extensions, micrometer head
Delivered:
Including box, spanner, extension rods (5 pcs.), micrometer head 139-001
Mass:
790 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Tubular Inside Micrometer with Extension 100-900mm 139-174 Click to open the PDF document
