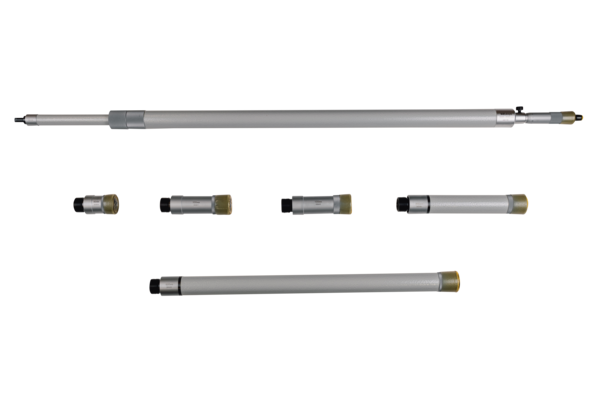

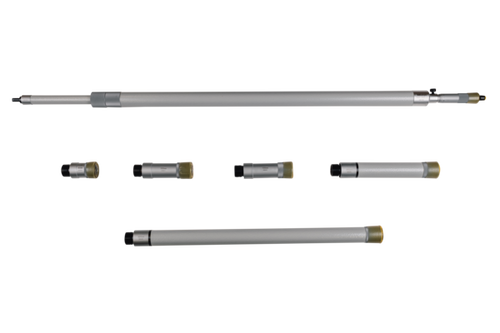

Tubular Inside Micrometer with Extension 1000-2000mm 140-157

Mitutoyo; Inside (Stick) Micrometer

This is an extension pipe type inside micrometer that offers you the following benefits:

• Interchangeable extensions in a hollow pipe design.

Features

• Digital/Analog: Analog
• Inch-Metric: Metric
  Range: 1000 - 2000 mm
• Measuring span: 10 mm
• Graduation: 0.01 mm
• Spindle feed error: 6 µm
• Limit of error: ±(7+max. measurement length/50) µm
• Scale: Thimble and sleeve satin chrome finish, ø18 mm ø13 mm (139-203, 139-204)
• Measuring spindle: Spindle pitch 0.5 mm
• Measuring face: Carbide
• Measuring method: 2-point
• Extension rods: 5 (50, 100 (2 pcs.) 200, 500 mm)

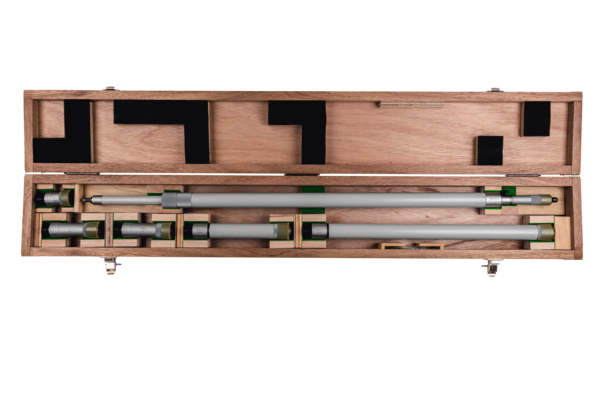

• Delivered: Including box, key, extensions, micrometer head
• Mass: 3700 g

All images are for representation only.
