Tubular Inside Micrometer with Extension 4-52" 139-180
Tubular Inside Micrometer with Extension 4-52" 139-180
Tubular Inside Micrometer with Extension 4-52" 139-180
Roll over image to zoom in Click on image to zoom
Tubular Inside Micrometer with Extension 4-52" 139-180Tubular Inside Micrometer with Extension 4-52" 139-180Tubular Inside Micrometer with Extension 4-52" 139-180

Tubular Inside Micrometer with Extension 4-52" 139-180

MitutoyoSKU: 139-180
List price: £799.00 Offer price: £583.00 Excluding VAT

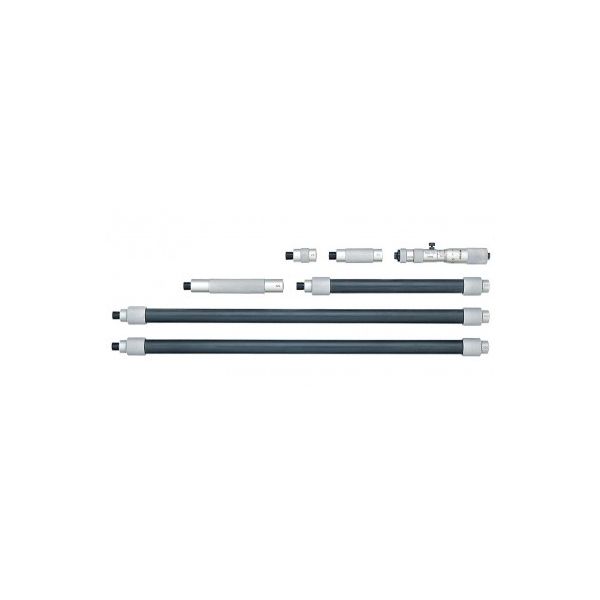

A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable extension tubes that can be used singly or in combination. The micrometer head is satin-chrome finished.
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Range:
4 - 52 "
Measuring span:
1"
Graduation:
0.001"
Limit of error:
±(0,00015+0,00005xnumber of rods+0,00005(max. measurement length/2))"
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
ø13 mm (139-203, 139-204)
Measuring spindle:
Spindle pitch 0.025" mm
Measuring face:
Carbide
Measuring method:
2-point
Extension rods:
6 (1, 2, 4, 8, 16" (2 pcs.))
Delivered:
Including box, key, extensions, micrometer head
Delivered:
Including box, spanner, extension rods (6 pcs.), micrometer head 139-002
Spindle feed error:
0.00015 inch
Mass:
1090 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Tubular Inside Micrometer with Extension 4-52" 139-180 Click to open the PDF document
