Tubular Inside Micrometer with Extension 40-160" 140-163
Tubular Inside Micrometer with Extension 40-160" 140-163
Tubular Inside Micrometer with Extension 40-160" 140-163
Roll over image to zoom in Click on image to zoom
Tubular Inside Micrometer with Extension 40-160" 140-163Tubular Inside Micrometer with Extension 40-160" 140-163Tubular Inside Micrometer with Extension 40-160" 140-163

Tubular Inside Micrometer with Extension 40-160" 140-163

MitutoyoSKU: 140-163
List price: £3,620.00 Offer price: £2,643.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

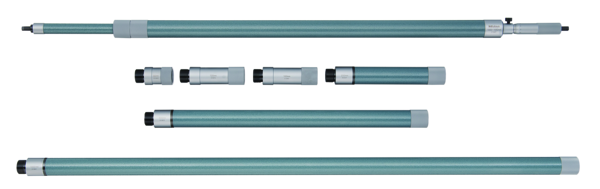

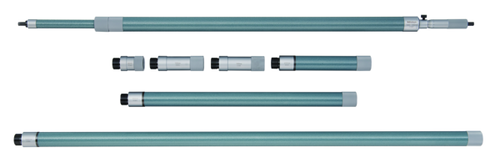

A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable extension tubes that can be used singly or in combination. The micrometer head is satin-chrome finished.
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Range:
40 - 160 "
Measuring span:
2"
Graduation:
0.001"
Limit of error:
±(0,00035+0,00005xnumber of rods+0,00005(max. measurement length/2))"
Scale:
Thimble and sleeve satin chrome finish, ø21 mm
Measuring spindle:
Spindle pitch 0,635 mm
Measuring face:
Carbide
Extension rods:
7 (2, 4 (2 pcs.), 8, 20, 40" (2 pcs.))
Delivered:
Including box, key
Delivered:
Including box, spanner, extension rods (7 pcs.), micrometer head
Spindle feed error:
0.0003 inch
Mass:
7200 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Tubular Inside Micrometer with Extension 40-160" 140-163 Click to open the PDF document
