Tubular Inside Micrometer with Extension 40-200" 140-164
Tubular Inside Micrometer with Extension 40-200" 140-164
Tubular Inside Micrometer with Extension 40-200" 140-164
Roll over image to zoom in Click on image to zoom
Tubular Inside Micrometer with Extension 40-200" 140-164Tubular Inside Micrometer with Extension 40-200" 140-164Tubular Inside Micrometer with Extension 40-200" 140-164

Tubular Inside Micrometer with Extension 40-200" 140-164

MitutoyoSKU: 140-164
List price: £4,500.00 Offer price: £3,285.00 Excluding VAT

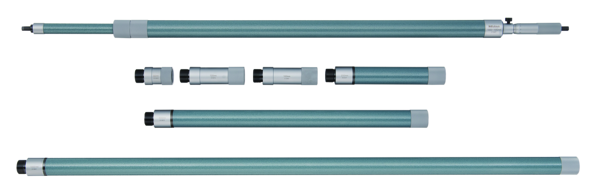

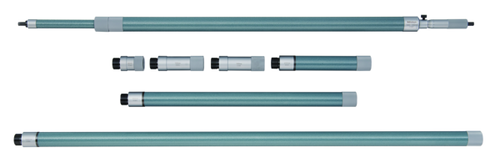

A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable extension tubes that can be used singly or in combination. The micrometer head is satin-chrome finished.
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Range:
40 - 200 "
Measuring span:
2"
Graduation:
0.001"
Limit of error:
±(0,00035+0,00005xnumber of rods+0,00005(max. measurement length/2))"
Scale:
Thimble and sleeve satin chrome finish, ø21 mm
Measuring spindle:
Spindle pitch 0,635 mm
Measuring face:
Carbide
Extension rods:
8 (2, 4 (2 pcs.), 8, 20, 40" (3 pcs.))
Delivered:
Including box, key
Delivered:
Including box, spanner, extension rods (8 pcs.), micrometer head
Spindle feed error:
0.0003 inch
Mass:
9000 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Tubular Inside Micrometer with Extension 40-200" 140-164 Click to open the PDF document
