Tubular Inside Micrometer with Extension 40-300mm 139-203

Mitutoyo; Inside (Stick) Micrometer

This is an extension pipe type inside micrometer that offers you the following benefits:

• Interchangeable extensions in a hollow pipe design.

Features

• Digital/Analog: Analog
• Inch-Metric: Metric
  Range: 40 - 300 mm
• Measuring span: 10 mm
• Graduation: 0.01 mm
• Spindle feed error: 6 µm
• Limit of error: ±(6+max. measurement length/50) µm
• Scale: Thimble and sleeve satin chrome finish, ø18 mm ø13 mm (139-203, 139-204)
• Measuring spindle: Spindle pitch 0.5 mm
• Measuring face: Carbide
• Measuring method: 2-point

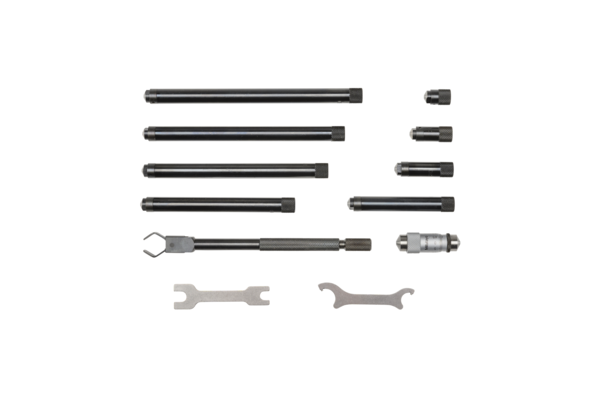

• Extension rods: 8 (10, 20, 30, 60, 90, 110, 120, 130 mm)

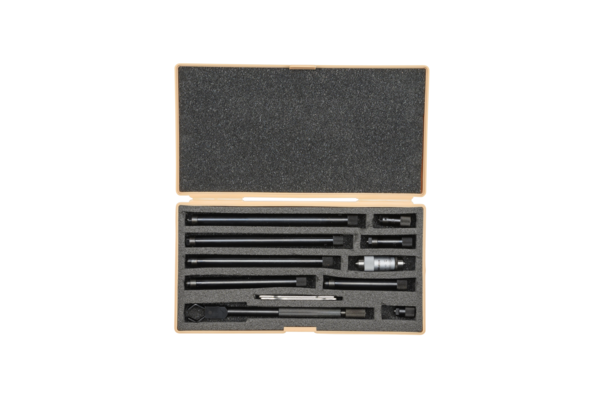

• Delivered: Including box, key, extensions, micrometer head
• Mass: 240 g

All images are for representation only.
