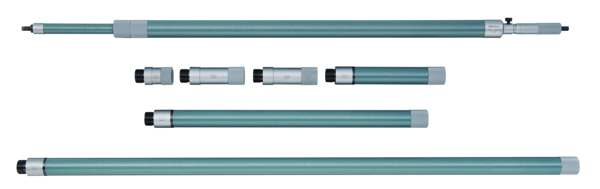

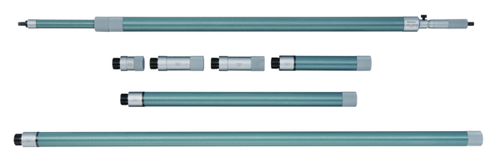

Tubular Inside Micrometer with Extension 40-80" 140-161

MitutoyoSKU: 140-161
List price: £2,640.00 Offer price: £1,927.00 Excluding VAT
This is a long range inside micrometer that offers you the following benefits:
  • It has a long measuring range of up to 5000 mm
  • Extension tube type design.
  • Measuring surfaces in carbide are available, micro-lap finish
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Range:
40 - 80 "
Measuring span:
2"
Graduation:
0.001"
Limit of error:
±(0,00035+0,00005xnumber of rods+0,00005(max. measurement length/2))"
Scale:
Thimble and sleeve satin chrome finish, ø21 mm
Measuring spindle:
Spindle pitch 0,635 mm
Measuring face:
Carbide
Extension rods:
5 (2, 4, (2 pcs.), 8, 20")
Delivered:
Including box, key
Delivered:
Including box, spanner, extension rods (5 pcs.), micrometer head
Spindle feed error:
0.0003 inch
Mass:
3900 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Tubular Inside Micrometer with Extension 40-80" 140-161 Click to open the PDF document
